Hayward Super Pump VS Variable Speed Pump 1.65HP W3SP2603VSP Parts & Diagram

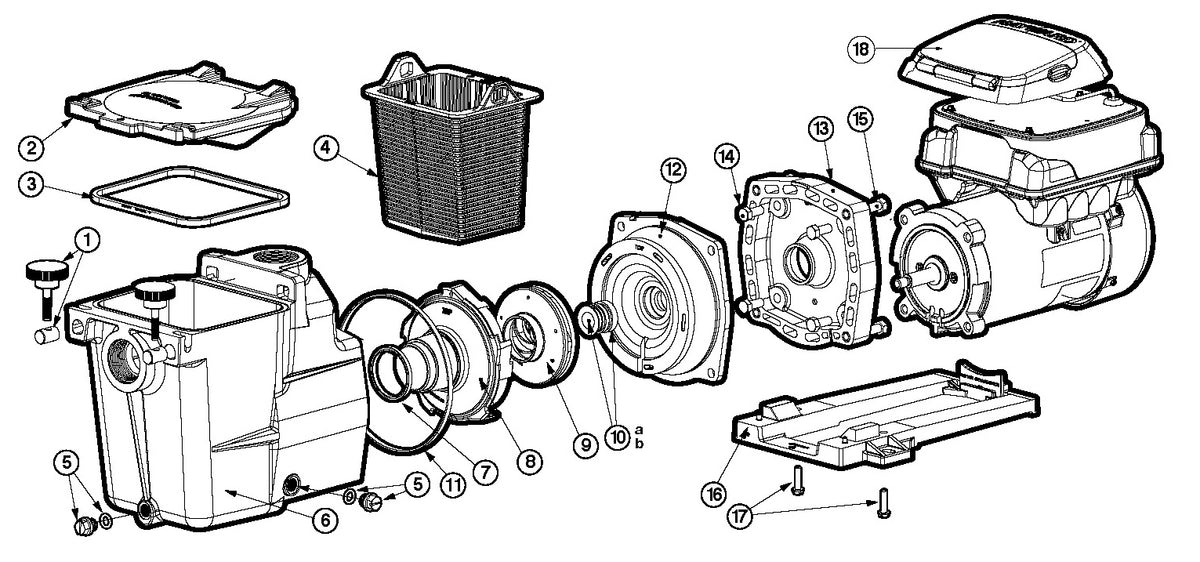

Replacement parts and exploded parts diagram for the Hayward Super Pump VS Variable Speed Pump 1.65HP (model W3SP2603VSP). Find the part on the diagram, then look for the same number (#) next to each part in the Available Parts list and add the parts you need to your cart.
Parts marked Alternate are compatible replacements from other manufacturers.
Other Parts on This Diagram
These parts are not listed for online purchase. Contact us with the diagram number and part number to order.
- #1 – SPX1600PN – Super Pump/ Super II Swivel Nut & Hand Knob Kit
- #3 – SPX1600S – Super Pump Strainer Cover Gasket
- #6 – SPX1600AA – 1.5"FPT Super Pump Strainer Housing
- #7 – SPX1600R – Super Pump/ Super II Diffuser Gasket
- #8 – SPX2600B – .5HP-1.5HP Super II Diffuser (BEFORE 1988)
- #11 – SPX1600T – Super Pump/ Maxflo Housing Gasket
- #12 – SPX2600E5 – Maxflo Seal Plate
- #13 – SPX1600F5 – Maxflo Motor Mounting Plate
- #14 – SPX0125Z44 – 4/PK Super II Motor Cap Screw
- #15 – SPX1600Z4 – Maxflo Pump Housing Cap Screw
- #16 – SPX2600G1 – Maxflo Pump MTG Foot W/Adapter & Screws
- #17 – SPX1600Z52 – 2/PK Super II Mounting Foot Cap Screw
- #18 – SPX3400DR4 – SP26115VSP Motor Drive Display Cover
- N/S – SPX26115Z1VSPE – Super VS Power END Assy
Please confirm your model number matches your existing equipment before ordering.
