Hayward SharkVac Robotic Pool Cleaner with Caddy W3RC9742CUBY Parts & Diagram

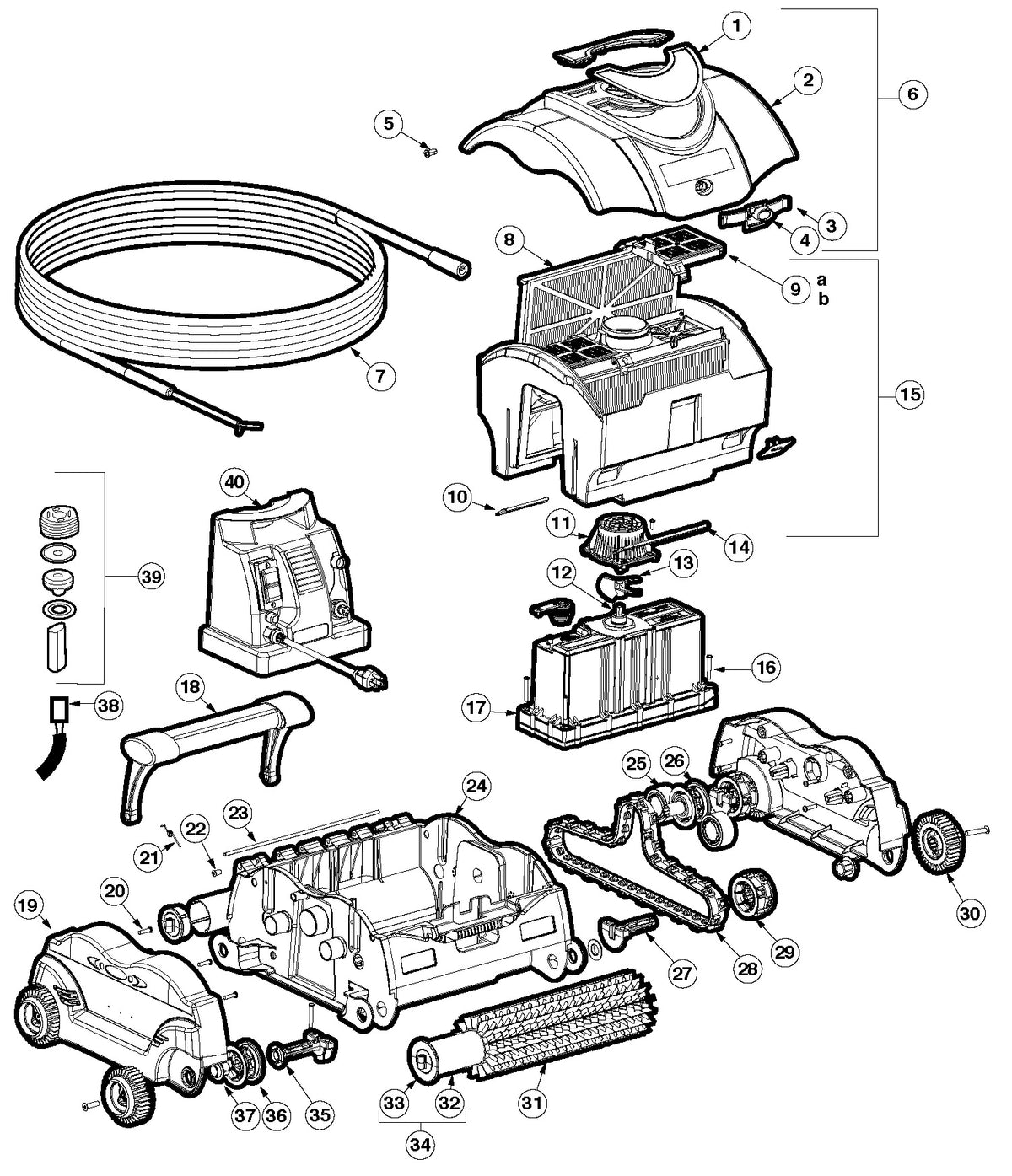

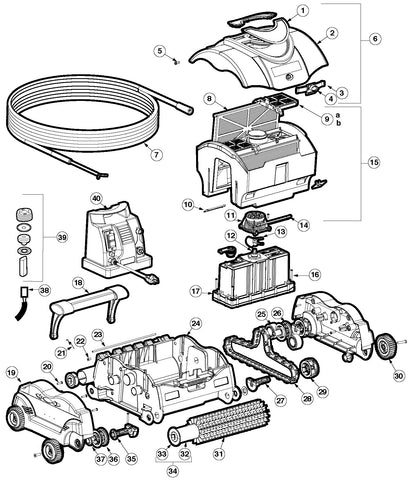

Replacement parts and exploded parts diagram for the Hayward SharkVac Robotic Pool Cleaner with Caddy (model W3RC9742CUBY). Find the part on the diagram, then look for the same number (#) next to each part in the Available Parts list and add the parts you need to your cart.
Parts marked Alternate are compatible replacements from other manufacturers.
Other Parts on This Diagram
These parts are not listed for online purchase. Contact us with the diagram number and part number to order.
- #4 – RCX97433 – Shark VAC Button
- #5 – RCX97423 – Bushing Dome SV SET OF 2
- #7 – RCX97413 – Cord Assy 50' Sv/Ev
- #10 – RCX97405 – Flap Drain Small SV
- #11 – RCX97455 – Sharkvac Tube Vent
- #13 – RCX11000 – Tigershark Impeller
- #14 – RCX97407 – Flap Drain Large SV
- #15 – RCX97414 – Filter Bucket Assy Sv/Ev (Includes 9, 10,11 )
- #16 – RCX97461 – Screw M5X 35MM Torx 5PK
- #19 – RCX97403-236 – Sharkvac Black Side Panel
- #20 – RCX12011 – M5X12 T-20 Torx PAN Head Screw
- #21 – RCX97427 – Spring Handle
- #22 – RCX97459 – 5PK Screw PT M7 3.14X10MM T25 (5 included in pack )
- #23 – RCX97429 – Shaft Hinge S.S. Sv/Ev
- #24 – RCX341142-236 – Sharkvac Black Base
- #31 – RCX26008 – Tigershark Roller Brush
- #32 – RCX97520ABK – Sharkvac Black Tube Wheel
- #33 – RCX97441 – Roller END SV
- #34 – RCX97410 – LT GRY Shark VAC Tube Wheel Assy
- #35 – RCX97435PAK2 – 2/SET Tigershark Roller Shaft Bushing Kit (2 included in pack )
- - – RCX31013A – Circuit Breaker 3A PS
- - – RCX31012 – Switch 16A Power Supply
Please confirm your model number matches your existing equipment before ordering.
