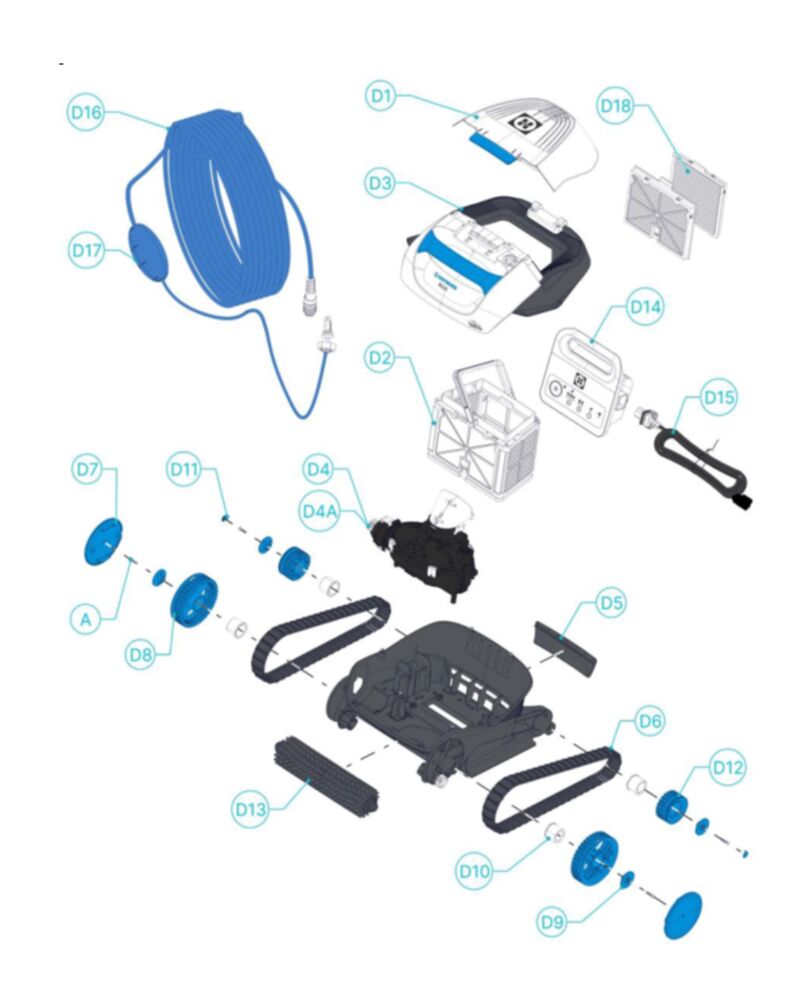

• Hayward PoolCleaner R110 Robotic Pool Cleaner W3RCH411CU parts diagram

Hayward PoolCleaner R110 Robotic Pool Cleaner W3RCH411CU Parts & Diagram

Replacement parts and exploded parts diagram for the Hayward PoolCleaner R110 Robotic Pool Cleaner (model W3RCH411CU). Find the part on the diagram, then look for the same number (#) next to each part in the Available Parts list and add the parts you need to your cart.

Parts marked Alternate are compatible replacements from other manufacturers.

Please confirm your model number matches your existing equipment before ordering.

GTIN:
SKU: DIAGRAM-W3RCH411CU
Brand: Hayward
$12.06 - $303.05
Tax and shipping are calculated at checkout.

Available Parts & Components

  • Maytronics KA50X16 SCREW - 3379616-A

    Maytronics KA50X16 SCREW - 3379616-A

    SKU: 3379616-A
    Out of stock
    View product
    $12.06
  • Maytronics Nautilus S100 Motor - 9995386-EX

    Maytronics Nautilus S100 Motor - 9995386-EX

    SKU: 9995386-EX
    View product
    $303.05
  • Maytronics Gear F/ Drive Motor Unit 550 - 9983142

    Maytronics Gear F/ Drive Motor Unit 550 - 9983142

    SKU: 9983142
    View product
    $14.76
  • Maytronics Front Wheel Blue - 99834107

    Maytronics Front Wheel Blue - 99834107

    SKU: 99834107
    View product
    $21.35
  • Maytronics Wheel Bushing 2 - 9983114

    Maytronics Wheel Bushing 2 - 9983114

    SKU: 9983114
    View product
    $12.06
  • Maytronics Small Wheel Light Blue - 99830157

    Maytronics Small Wheel Light Blue - 99830157

    SKU: 99830157
    Out of stock
    View product
    $14.70
  • Maytronics Power Supply Advanced 115V Us For Active 20/30/30I - 99956035US-F1

    Maytronics Power Supply Advanced 115V Us For Active 20/30/30I - 99956035US-F1

    SKU: 99956035US-F1
    View product
    $279.00
  • Maytronics Dolphin Cord Cable For Digital Power Supply - 58984402LF

    Maytronics Dolphin Cord Cable For Digital Power Supply - 58984402LF

    SKU: 58984402LF
    View product
    $33.87
  • Dolphin Maytronics Cable - 9995884-DIYF

    Dolphin Maytronics Cable - 9995884-DIYF

    SKU: 9995884-DIYF
    View product
    $125.00
  • Maytronics Blue Cable Float - 99960081

    Maytronics Blue Cable Float - 99960081

    SKU: 99960081
    View product
    $15.72
Subtotal $0.00
Expert Support
Secure Checkout
Quality Guaranteed
Fast Shipping 3-5 Days

Section title

Replacement parts and exploded parts diagram for the Hayward PoolCleaner R110 Robotic Pool Cleaner (model W3RCH411CU). Find the part on the diagram, then look for the same number (#) next to each part in the Available Parts list and add the parts you need to your cart.

Parts marked Alternate are compatible replacements from other manufacturers.

Please confirm your model number matches your existing equipment before ordering.

Key Features

  • Exploded parts diagram for the Hayward PoolCleaner R110 Robotic Pool Cleaner (model W3RCH411CU)
  • 10 replacement parts available to order online
  • Diagram number shown next to every part for easy matching
  • Genuine Hayward parts plus compatible alternates
  • Add multiple parts to your cart at once
