Hayward HCP 3000 Series Pump 5HP 208-230V HCP30501 Parts & Diagram

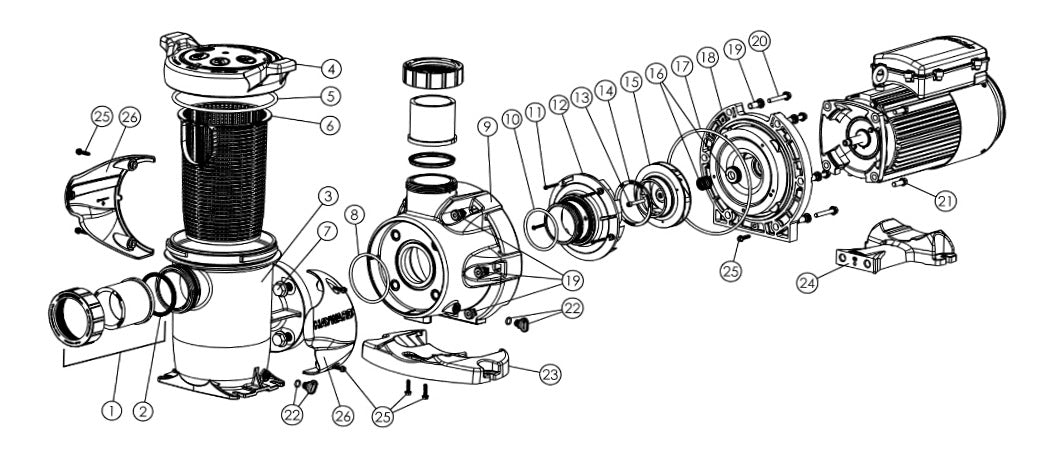

Replacement parts and exploded parts diagram for the Hayward HCP 3000 Series Pump 5HP 208-230V (model HCP30501). Find the part on the diagram, then look for the same number (#) next to each part in the Available Parts list and add the parts you need to your cart.
Parts marked Alternate are compatible replacements from other manufacturers.
Other Parts on This Diagram
These parts are not listed for online purchase. Contact us with the diagram number and part number to order.
- #2 – HCXP3000UG – 2/SET Union Gasket
- #3 – HCXP3000H – Strainer Housing W/ Plug
- #4 – HCXP3000DLS – Strainer Cover Kit
- #7 – HCXP3000Z3 – Strainer Housing Flange Bolt/Washer
- #9 – HCXP3000A – Pump Housing W/ Drain Plug
- #11 – SPX2700Z3SSPAK4 – 4/PK Diffuser Screw
- #13 – SPX3200Z1 – Tristar Impeller Screw
- #19 – SPX3200Z211 – Tristar Pump Housing Insert & Spacer Kit
- #20 – SPX3200Z3 – Tristar SP3200X Housing Bolt
- #21 – SPX3200Z34PAK4 – 4/PK Motor Bolt
- #22 – SPX4000FG – .25" Drain Plug W/ Gasket
- #23 – HCXP3000F – Pump Housing Base
- #24 – HCXP3000G – Motor Support Base
- #25 – SPX1600Z5SSPAK7 – 7/PK Base Screw
- #26 – HCXP3000N250 – Platinum Side Plate SET
- #26 – HCXP3000N251 – Blue Side Plate SET
- - – HCXP3020Z1M – 2HP 208-230V Motor
- - – HCXP3020Z1D – 2HP 208-230/460V 3PH Motor
- - – HCXP3030Z1D – 3HP 208-230/460V 3PH Motor
- - – HCXP3050Z1D – 5HP 208-230/460V 3PH Motor
- - – HCXP3020Z1DC – 2HP 575V 3PH Motor
- - – HCXP3030Z1DC – 3HP 575V 3PH Motor
- - – HCXP3050Z1DC – 5HP 575V 3PH Motor
- - – HCXP3075Z1DC – 7HP 575V 3PH Motor
Please confirm your model number matches your existing equipment before ordering.
