Hayward 60 SqFt ProGrid DE Filter W3DE6020 Parts & Diagram

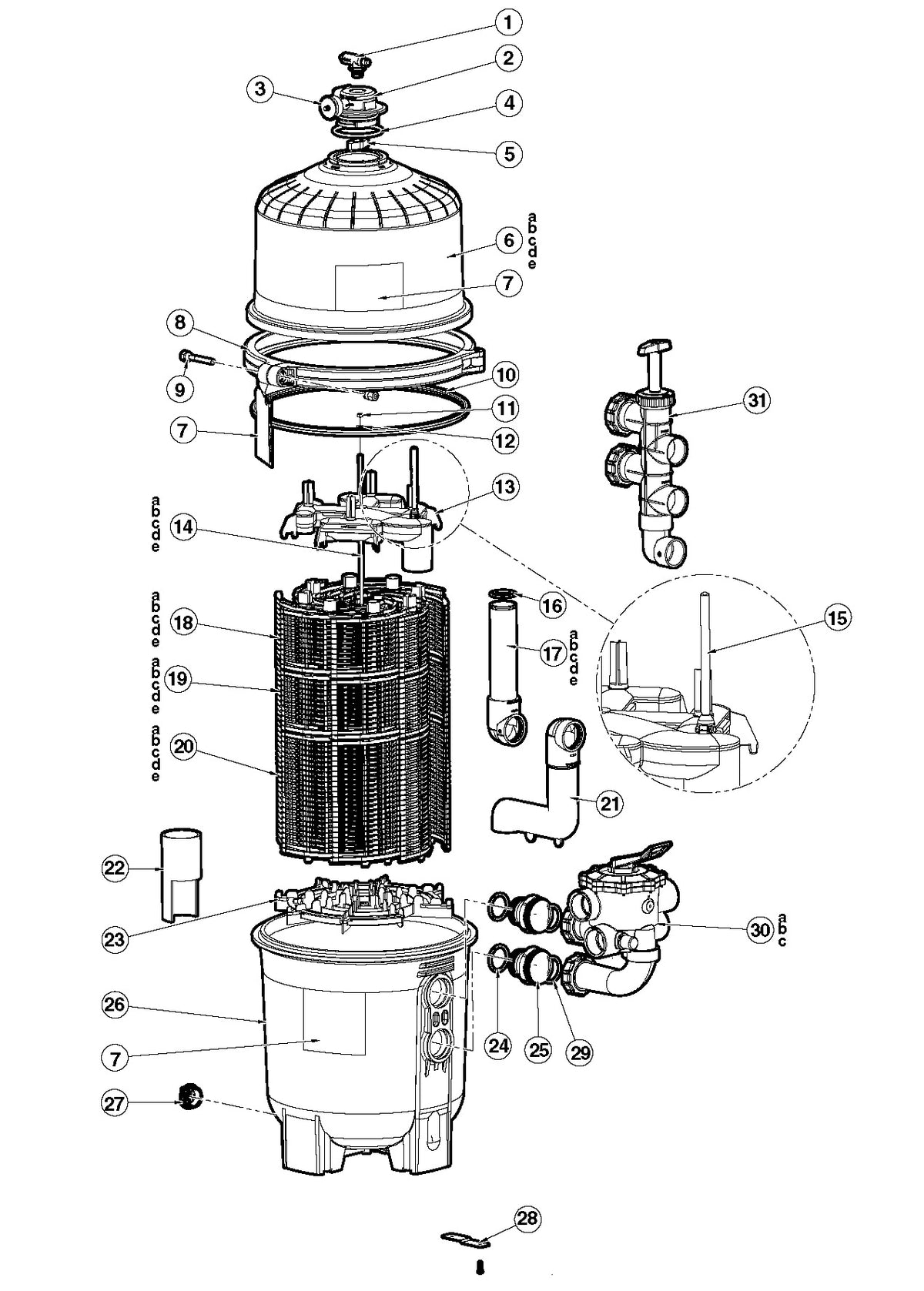

Replacement parts and exploded parts diagram for the Hayward 60 SqFt ProGrid DE Filter (model W3DE6020). Find the part on the diagram, then look for the same number (#) next to each part in the Available Parts list and add the parts you need to your cart.
Parts marked Alternate are compatible replacements from other manufacturers.
Other Parts on This Diagram
These parts are not listed for online purchase. Contact us with the diagram number and part number to order.
- #1 – CCX1000V – Xstream AIR Relief Valve W/ Oring
- #4 – DEX2420Z8A – Oring Kit 2PK (2 included in pack )
- #4 – DEX2420Z8A – Progrid Oring Kit (2 included in pack )
- #5 – CCX1000N – 2/PK Xstream Adapter Nut
- #11 – ECX176865 – 5/16-18" Retainer Nut
- #12 – ECX1109 – 5/16" Washer (2 Required )
- #12 – ECX1108A – Mounting Screw W/ Washer (2 Required )
- #14d – DEX6000R – 60SQF DE Filter Retainer ROD (DE6020 )
- #15 – DEX2400CR – Microclear Flex AIR Relief Assy
- #16 – DEX2400Z5 – Swimclear Outlet Elbow Oring
- #17d – DEX6020EA – DE6020 Outlet Elbow Assy W/ Oring (DE6020 )
- #20d – DEX6000DS – 10/CS 60SQF Partial DE Filter Grid (DE6020; Short )
- #21 – DEX2420GA – Progrid Inlet Elbow
- #24 – SX220Z2 – Swimclear/ Progrid Bulkhead Oring (2 Required )
- #25 – DEX2420F – Swimclear/ Progrid Bulkhead Fitting (2 Required )
- #27 – SP1022CBLK – 1.5" Black MPT Plug W/ Oring
- #28 – DEX2420DCKIT – Pro-Grid DE Strap Kit (2 Straps, 2 Screws; Optional )
- #29 – SX200Z4 – SP0410X/SP0740DE Oring (2 included in pack )
Please confirm your model number matches your existing equipment before ordering.
