Hayward 425 SqFt Cartridge Filter W3C4030 Parts & Diagram

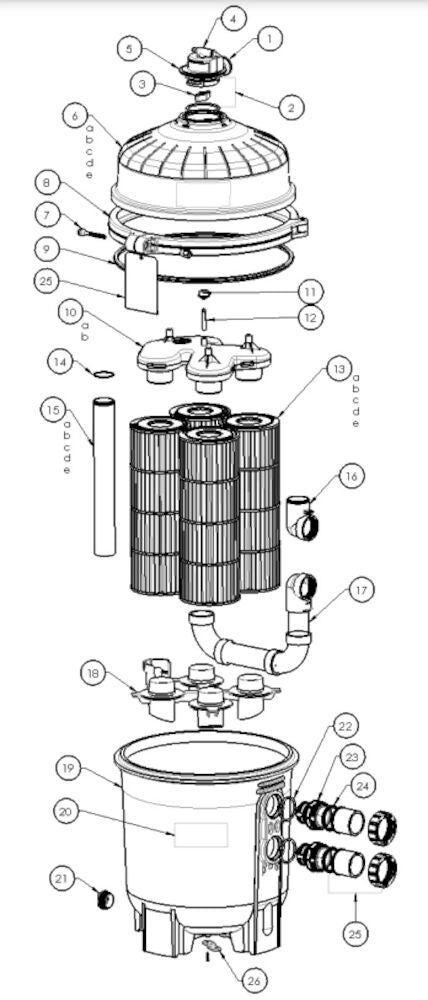

Replacement parts and exploded parts diagram for the Hayward 425 SqFt Cartridge Filter (model W3C4030). Find the part on the diagram, then look for the same number (#) next to each part in the Available Parts list and add the parts you need to your cart.
Parts marked Alternate are compatible replacements from other manufacturers.
Other Parts on This Diagram
These parts are not listed for online purchase. Contact us with the diagram number and part number to order.
- #2 – DEX2420Z8A – O-Ring Kit (Set of 2)
- #3 – CCX1000N – Air Relief Valve Nut
- #4 – CCX1000V – Manual Air Relief Valve With O-Ring
- #6a – DEX2420BTC – Upper Filter Body C2030
- #6b – DEX3620BTC – Upper Filter Body C3030
- #11 – CX3000J1 – Air Relief Filter
- #12 – CX2030Z3 – Air Relief Tube
- #13c – CX875RE – Star-Clear C4500 Cartridge Element
- #14 – DEX2400Z5 – O-Ring
- #15a – CX3031F6 – Outlet Pipe C2030
- #15b – CX3031F7 – Outlet Pipe C3030
- #15c – CX3031F8 – Outlet Pipe C4030
- #15d – CX3031F9 – Outlet Pipe C5030
- #15e – CX3031F10 – Outlet Pipe C7030
- #16 – CX3030F – Inlet Elbow
- #17 – CX3030H – Swimclear Piping Assembly
- #18 – CX3030D – Bottom Seal Plate
- #21 – SP1022CBLK – 1 ½” Drain Plug W/O-ring
- #22 – SX220Z2 – O-Ring
- #23 – CX3035F – Bulkhead Fitting
- #26 – DEX2420DCKIT – Strap Kit (Optional)
Please confirm your model number matches your existing equipment before ordering.
