Hayward 2" 4-Way Valve for DE Filter SP0740DE Parts & Diagram

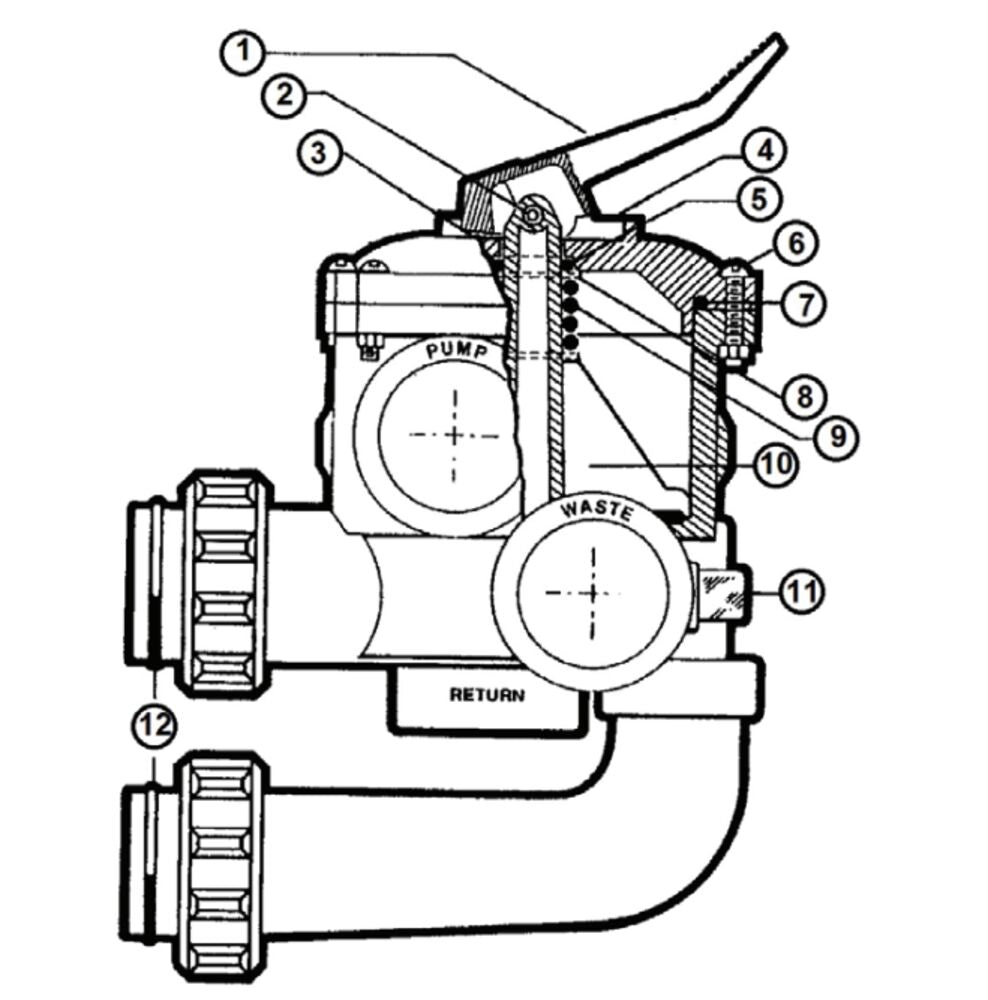

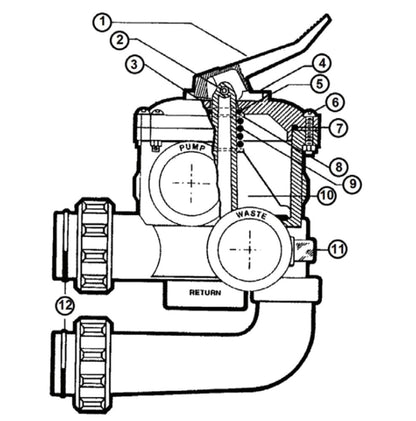

Replacement parts and exploded parts diagram for the Hayward 2" 4-Way Valve for DE Filter (model SP0740DE). Find the part on the diagram, then look for the same number (#) next to each part in the Available Parts list and add the parts you need to your cart.
Parts marked Alternate are compatible replacements from other manufacturers.
Other Parts on This Diagram
These parts are not listed for online purchase. Contact us with the diagram number and part number to order.
- #1 – SPX0710FL – Handle, Large
- #1 – SPX0710XF – SP0714T Valve Handle
- #2 – SPX0710XZ7 – Pin, for Handle
- #3 – SPX0710Z16 – Non-Metallic Bearing (Pack of 5)
- #3 – CX900W – StarClear™ Plus Knob Washer
- #3 – SPX0710Z16 – SP0714T Non-Metallic Bearing
- #5 – SPX0704HA – O-Ring & TFE Shaft Seal set
- #7 – SPX0715Z1 – Cover O-Ring
- #8 – SPX0710Z62 – Spring Washer Set (Set of 2)
- #9 – SPX0603S – Spring
- #10 – SPX0740C – Key/Stemassembly
- #11 – SPX0710MA – Sight Glass With Gasket
- #12 – SX200Z4 – SP0410X/SP0740DE Oring
- Not Shown – SPX0740D – Valve Seat Gasket
