Hayward 1-1/2" Side Mount Valve for S200 Sand Filter SPX0710X32 Parts & Diagram

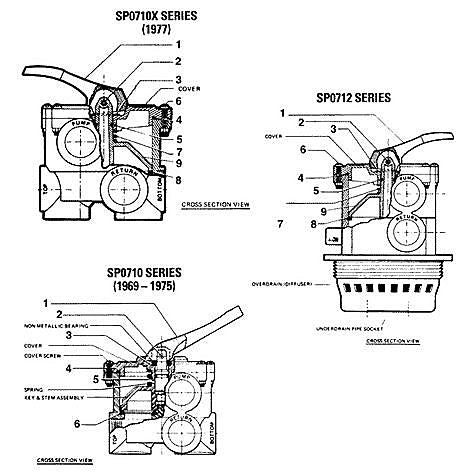

Replacement parts and exploded parts diagram for the Hayward 1-1/2" Side Mount Valve for S200 Sand Filter (model SPX0710X32). Find the part on the diagram, then look for the same number (#) next to each part in the Available Parts list and add the parts you need to your cart.
Parts marked Alternate are compatible replacements from other manufacturers.
Other Parts on This Diagram
These parts are not listed for online purchase. Contact us with the diagram number and part number to order.
- #1 – SPX0710XF – SP0714T Valve Handle
- #1 – SPX0710F – SP0715/SP0716 VLV Metallic Handle
- #2 – SPX0710XZ7 – SP0714T Vari-Flo Handle Pin
- #2 – SPX0710Z7 – SP0710/0711 MPV Handle Pin
- #3 – SPX0710Z16 – 5/PK SP0714T Valve Non-Metallic Bearing
- #3 – CX900W – StarClear™ Plus Knob Washer
- #3 – SPX0710Z16 – SP0714T Non-Metallic Bearing
- #4 – SPX0710XZ3 – 1.5" Vari-Flo MPV Cover Oring
- #4 – SPX0710Z3 – SP0710/SP0711 Cover O-Ring
- #5 – SPX0735GA – SP0714T MPV Shaft Oring
- #5 – SPX0603Z2A – SP0710/0711 MPV Oring/Teflon Shaft Seal
- #6 – SPX0710Z1A – 6/PK Vari-Flo Cover Screw W/Nut
- #7 – SPX0603S – Multiport Valve Key/Stem Spring
- #8 – SPX0710XD – 1.5" Vari-Flo MPV 5-SPOKE Spider Gasket
- #9 – SPX0710XC – 1.5" Vari-Flo Key/Stem Assy
- not shown – SPX0710Z62 – 2/PK SP0714T Valve Spring Washer
- not shown – SPX0710K – .25" SP0710 VLV Plastic Pipe Plug
- not shown – SPX0710XBA – White Vari-Flo KEY Cover & Handle Assy
- not shown – SPX0710XBA17 – Black Vari-Flo KEY Cover & Handle Assy
- not shown – SPX0710MA – Vari-Flo Threaded Sight Glass W/ Gasket
- not shown – SX200Z9 – S200/S240/S245T Gasket
Please confirm your model number matches your existing equipment before ordering.
