Hayward 1 1/2" Black Vari-Flo Top Mount Multiport Valve SP0714T Parts & Diagram

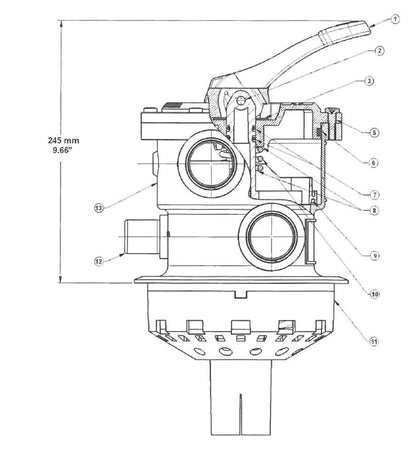

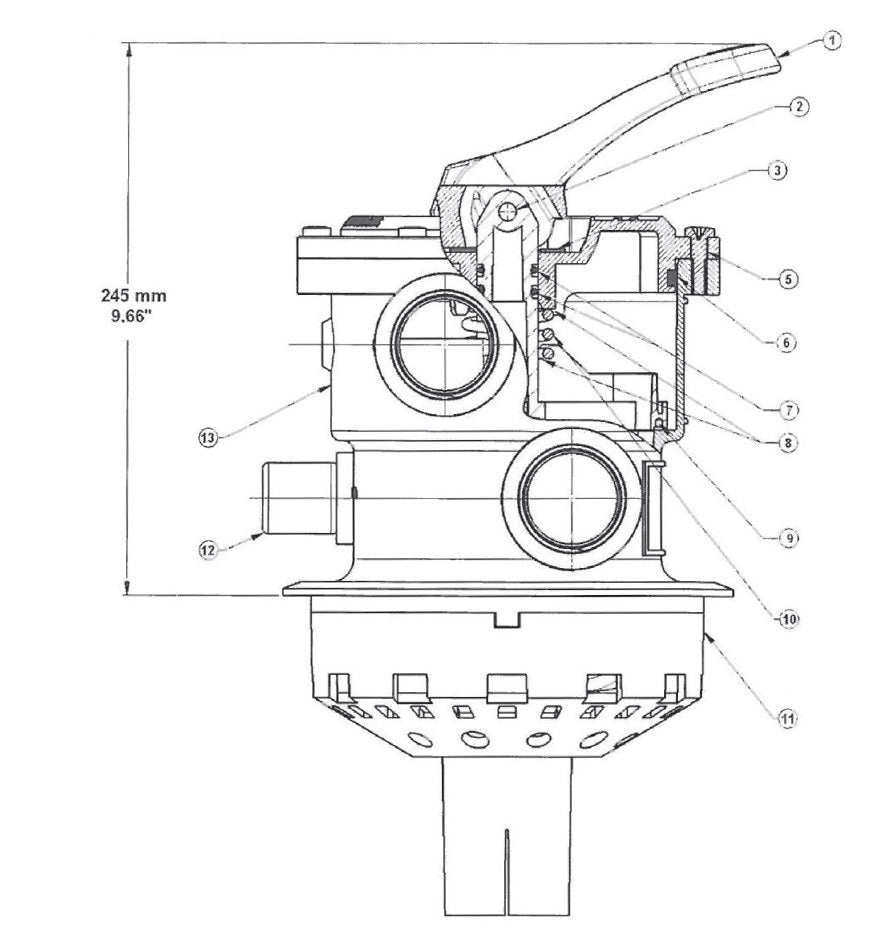

Replacement parts and exploded parts diagram for the Hayward 1 1/2" Black Vari-Flo Top Mount Multiport Valve (model SP0714T). Find the part on the diagram, then look for the same number (#) next to each part in the Available Parts list and add the parts you need to your cart.
Parts marked Alternate are compatible replacements from other manufacturers.
Other Parts on This Diagram
These parts are not listed for online purchase. Contact us with the diagram number and part number to order.
- #1 – SPX0710XF –
- #2 – SPX0710XZ7 –
- #3 – SPX0710Z16 –
- #3 – CX900W – StarClear™ Plus Knob Washer
- #3 – SPX0710Z16 – SP0714T Non-Metallic Bearing
- #5 – SPX0714Z1 –
- #7 – SPX0735GA –
- #8 – SPX0710Z62 –
- #9 – SPX0714CA –
- #10 – SPX0603S –
- #12 – SPX0710MA –
- #13 – SPX0714A – Valve Body With Sight Glass (For SP0714T or SP0714TC)
Please confirm your model number matches your existing equipment before ordering.
GTIN:
SKU: DIAGRAM-SP0714T
Brand: Hayward
Price range
$15.66 - $139.00
Tax and shipping are calculated at checkout.
Expert Support
Secure Checkout
Quality Guaranteed
Fast Shipping 3-5 Days
Key Features
- Exploded parts diagram for the Hayward 1 1/2" Black Vari-Flo Top Mount Multiport Valve (model SP0714T)
- 8 replacement parts available to order online
- Diagram number shown next to every part for easy matching
- Genuine Hayward parts plus compatible alternates
- Add multiple parts to your cart at once
