Coates ST Series Electric Heater 11kW 1 Phase 12411ST Parts & Diagram

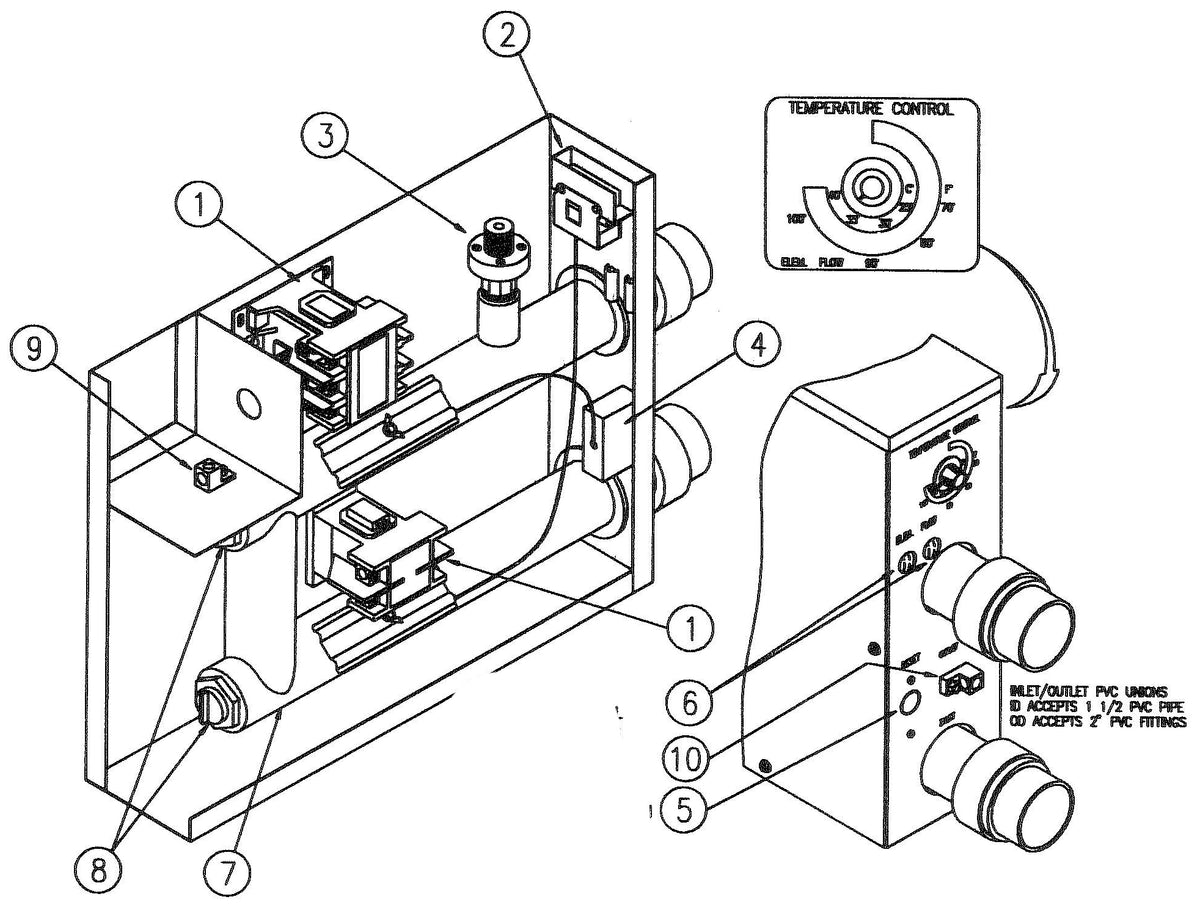

Replacement parts and exploded parts diagram for the Coates ST Series Electric Heater 11kW 1 Phase (model 12411ST). Find the part on the diagram, then look for the same number (#) next to each part in the Available Parts list and add the parts you need to your cart.
Parts marked Alternate are compatible replacements from other manufacturers.
Other Parts on This Diagram
These parts are not listed for online purchase. Contact us with the diagram number and part number to order.
- #01 – 21000100 – 2-POLE 50A 240V Coil Contactor
- #01 – 21000650 – 2-POLE 35A 240V Coil Contactor
- #02 – 22002001 – CE/CPH/PHS/6ILS Temperature Control Thermostat
- #03 – 22007210 – 1-5 PSI 6IL/ 6ILS Pressure Switch
- #04 – 22003820 – High Temperature Limit Switch
- #06 – 29034620 – 5/16" 250V Amber Pilot Light
- #07 – 62002605P – Stainless Steel Housing
- #11 – 32705010 – PVC Sha/Shb Split Nut Union
Please confirm your model number matches your existing equipment before ordering.
