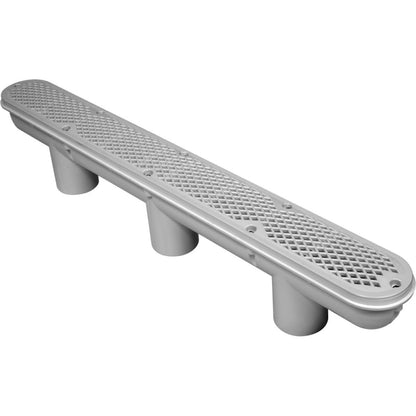

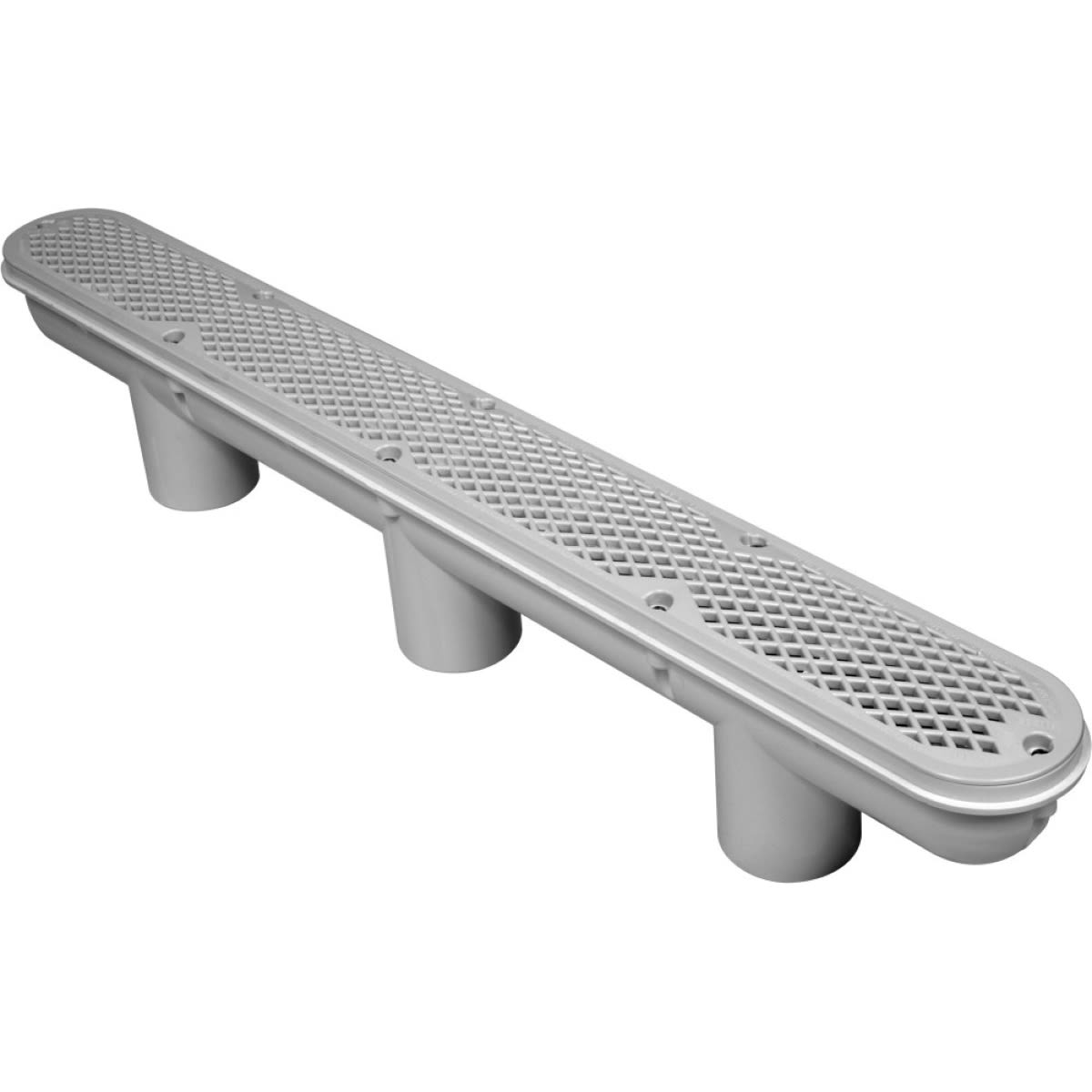

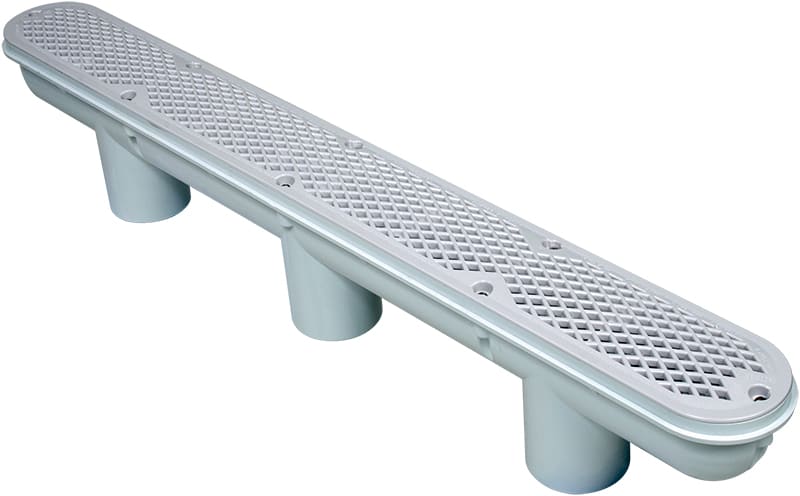

Waterway Concrete Diamond Strip Drain 32" Channel White - 640-1360 V

The Diamond Strip Channel Drain is designed to provide efficient water collection while maintaining a clean appearance around concrete pool decks. Featuring a distinctive diamond-pattern strip grate, this system helps remove standing water from pool surrounds, reducing slip hazard and directing runoff away from walking surfaces. It creates a drainage pathway that integrates seamlessly into pool deck designs.

GTIN: 806105405685
SKU: 640-1360 V
Brand: Waterway
$247.20
$371.00
Tax calculated at checkout.
SAVE $123.80 33% off regular price
Out of stock
  • Free Shipping On orders over $75
  • 30-Day Returns Easy return policy
  • Amazing Support Monday – Friday

The Diamond Strip Channel Drain is designed to provide efficient water collection while maintaining a clean appearance around concrete pool decks. Featuring a distinctive diamond-pattern strip grate, this system helps remove standing water from pool surrounds, reducing slip hazard and directing runoff away from walking surfaces. It creates a drainage pathway that integrates seamlessly into pool deck designs.

Key Features

  • Total open area: 37.7 sq. in.
  • Frame size: 32" channel
  • Floor flow rate (one port center): 280 GPM, 2.5" plumbing
  • Floor flow rate (two ports): 320 GPM, 2.5" plumbing
  • Wall flow rate (one port center): 216 GPM, 2.5" plumbing
  • Wall flow rate (two ports): 216 GPM, 2.5" plumbing
  • Flow rate @ 1.5 ft/sec: 110 GPM

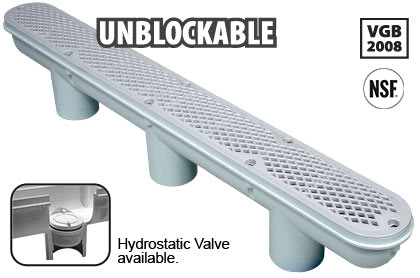

  • Unblockable
