Jandy 1 1/2"-2" Neverlube Positive Seal Standard 2-Port Diverter Valve 4724 Parts & Diagram

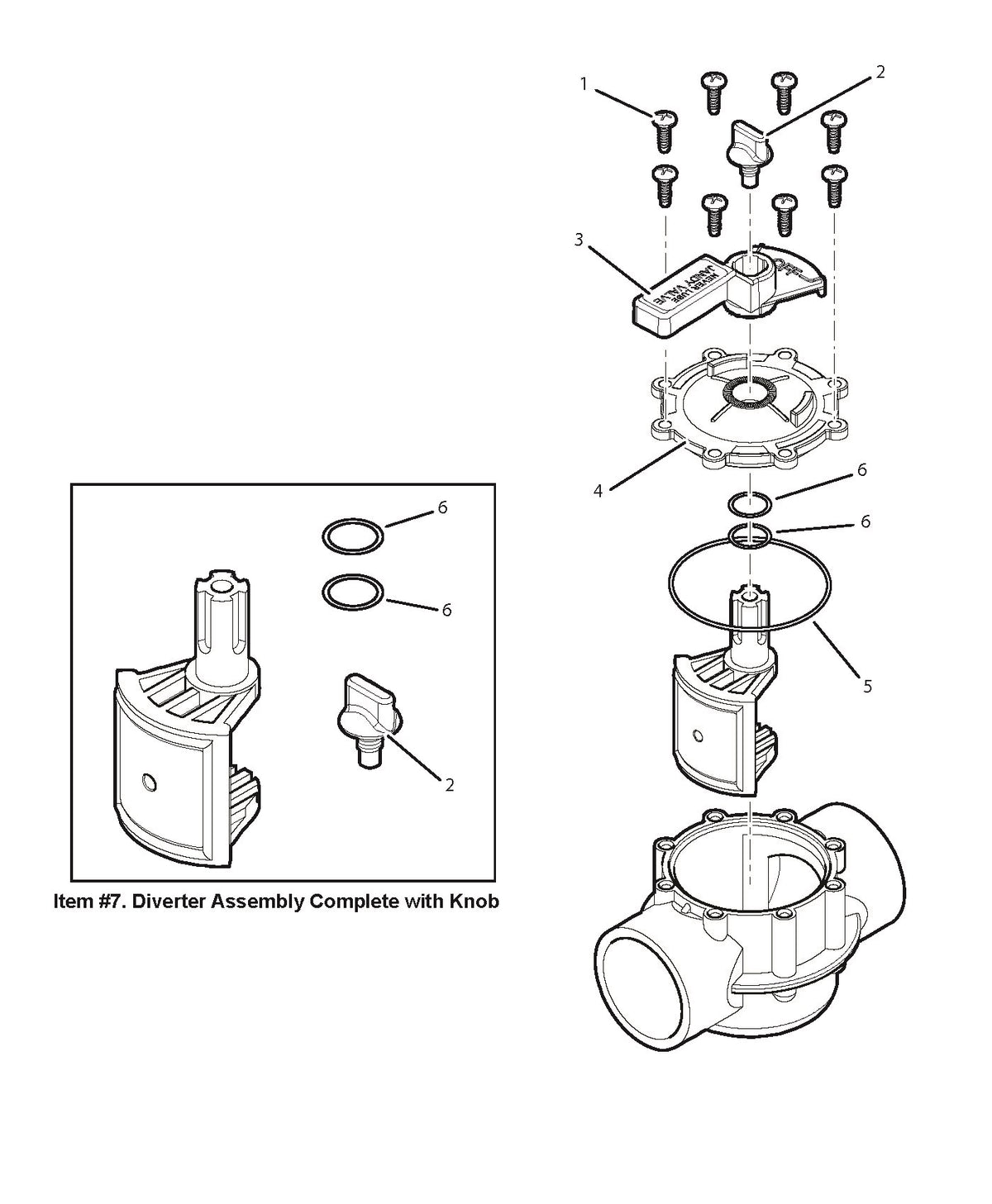

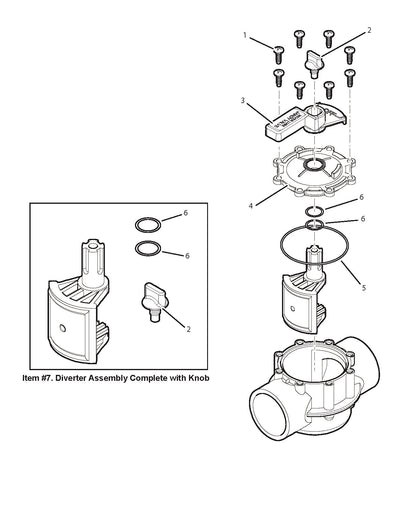

Replacement parts and exploded parts diagram for the Jandy 1 1/2"-2" Neverlube Positive Seal Standard 2-Port Diverter Valve (model 4724). Find the part on the diagram, then look for the same number (#) next to each part in the Available Parts list and add the parts you need to your cart.
Parts marked Alternate are compatible replacements from other manufacturers.
Other Parts on This Diagram
These parts are not listed for online purchase. Contact us with the diagram number and part number to order.
- #1 – 1298 – #14 x 3/4" Valve Housing Screw (8 Quantity)
- #3 – R0642300 – Valve Handle Never Lube" Gray
- #4 – R0642100 – Valve Cover (2-Port) Gray
- #5 – R0465700 – 151 O-Ring
- #6 – R0487100 – 116 O-Ring (2 Quantity)
- #6 – 1307 – Neverlube Diverter Shaft O-Ring
- #6 – R0552200 – Cover Kit for Bwvl-nvl/ 8034J/8034 Neverlube 2-in-1 Backwash Valves
- #6 – R0552400 – O-Ring Kit for Bwvl-nvl/ 8034J/8034 Neverlube 2-in-1 Backwash Valves
Please confirm your model number matches your existing equipment before ordering.
