Pentair Rainbow 320 In-Line Automatic Chlorinator R171096 Parts & Diagram

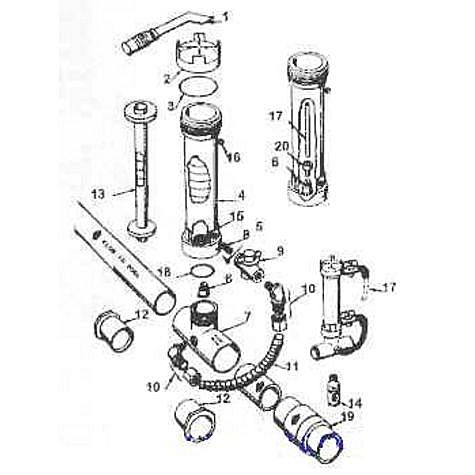

Replacement parts and exploded parts diagram for the Pentair Rainbow 320 In-Line Automatic Chlorinator (model R171096). Find the part on the diagram, then look for the same number (#) next to each part in the Available Parts list and add the parts you need to your cart.
Parts marked Alternate are compatible replacements from other manufacturers.
Other Parts on This Diagram
These parts are not listed for online purchase. Contact us with the diagram number and part number to order.
- #1 – R172052 – Cap Wrench
- #2 – R172008W – Chlorinator Lid
- #5 – R01052 – Model 320/ 322 Inline Lock Screw
- #7 – R172317 – 1.5"MPTx2"SLIP Diverter Tee
- #8 – R172029 – .25"NPT Male Tube Fitting
- #11 – R172091 – #320/ #322 5/8" Short Feeder Tube
- #15 – R172255 – Inline Chlorinator Check Valve Screen
- #15 – 210396 – Inline Chlorinator Check Valve Screen
- #16 – R172134 – .5"MPT PVC Plug
- #19 – R172288 – 1.5"-2" Corrosion Resistant Check Valve
- #20 – R172048B – .5" Bromine Standpipe Adapter
Please confirm your model number matches your existing equipment before ordering.
