Pentair SuperFlo High Performance Pool Pump 1 HP EC-348190 Parts & Diagram

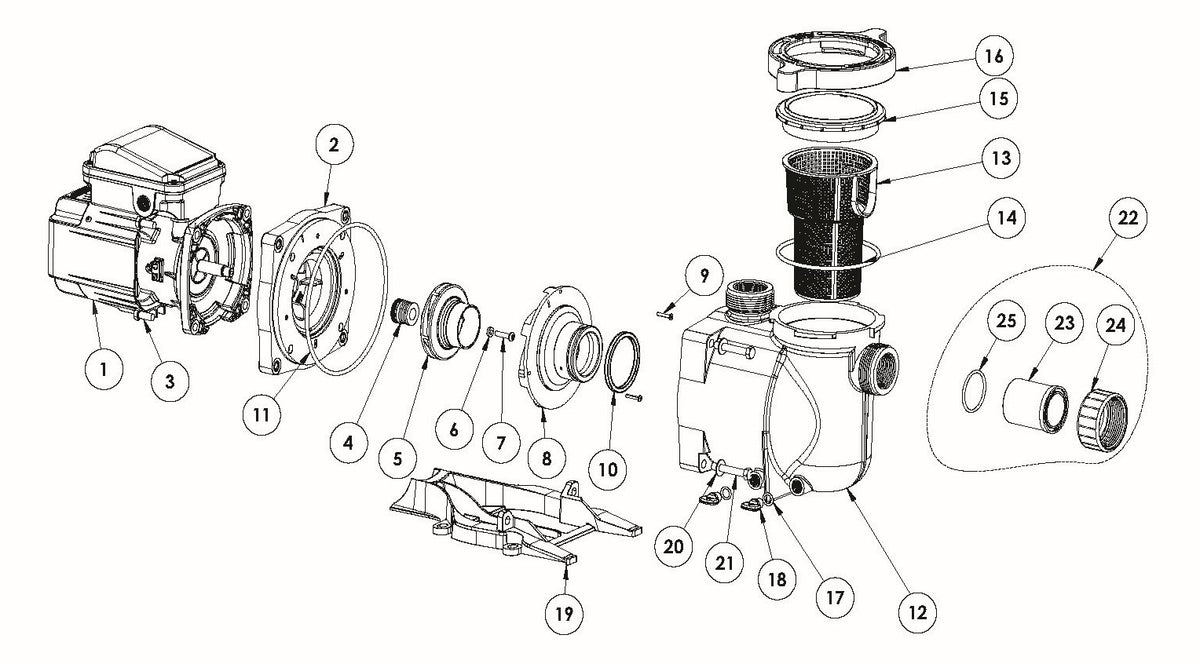

Replacement parts and exploded parts diagram for the Pentair SuperFlo High Performance Pool Pump 1 HP (model EC-348190). Find the part on the diagram, then look for the same number (#) next to each part in the Available Parts list and add the parts you need to your cart.
Parts marked Alternate are compatible replacements from other manufacturers.
Other Parts on This Diagram
These parts are not listed for online purchase. Contact us with the diagram number and part number to order.
- #1 – 356363S – Motor
- #7 – 071652Z – SCREW, Impeller
- #7 – 071652 – Impeller Screw 1.25" x .5" x .32"
- #7 – 071652Z – Impeller Screw 1/4"-20 x 1"
- #9 – 356213Z – SCREW, Diffuser #8-32 x 7/8" (3 Required)
- #18 – 071131Z – Drain Plug (4 Required)
- #18 – 071131Z – Drain Plug Knob 1.25" x .75" x .5" (4 Required)
- #21 – 355621 – BOLT, Strainer POT (4 Required)
- #25 – U178-920P – 1/4" NPT Drain Plug Assembly With O-Ring (2 Required)
- #25 – 25010-0200 – Air Relief Valve Assembly for PLD & PTM Filter Systems (2 Required)
- #25 – 072555 – #2-112 Nitrile O-Ring Cover (2 Required)
- #25 – U9-226 – 1 1/2" Diffuser O-Ring (2 Required)
Please confirm your model number matches your existing equipment before ordering.
GTIN:
SKU: DIAGRAM-EC-348190
Brand: Pentair
Price range
$2.70 - $239.00
Tax and shipping are calculated at checkout.
Expert Support
Secure Checkout
Quality Guaranteed
Fast Shipping 3-5 Days
Key Features
- Exploded parts diagram for the Pentair SuperFlo High Performance Pool Pump 1 HP (model EC-348190)
- 27 replacement parts available to order online
- Diagram number shown next to every part for easy matching
- Genuine Pentair parts plus compatible alternates
- Add multiple parts to your cart at once
