Hayward TriStar VS 950 Variable Speed Pump 2.7HP SP32950VSP Parts & Diagram

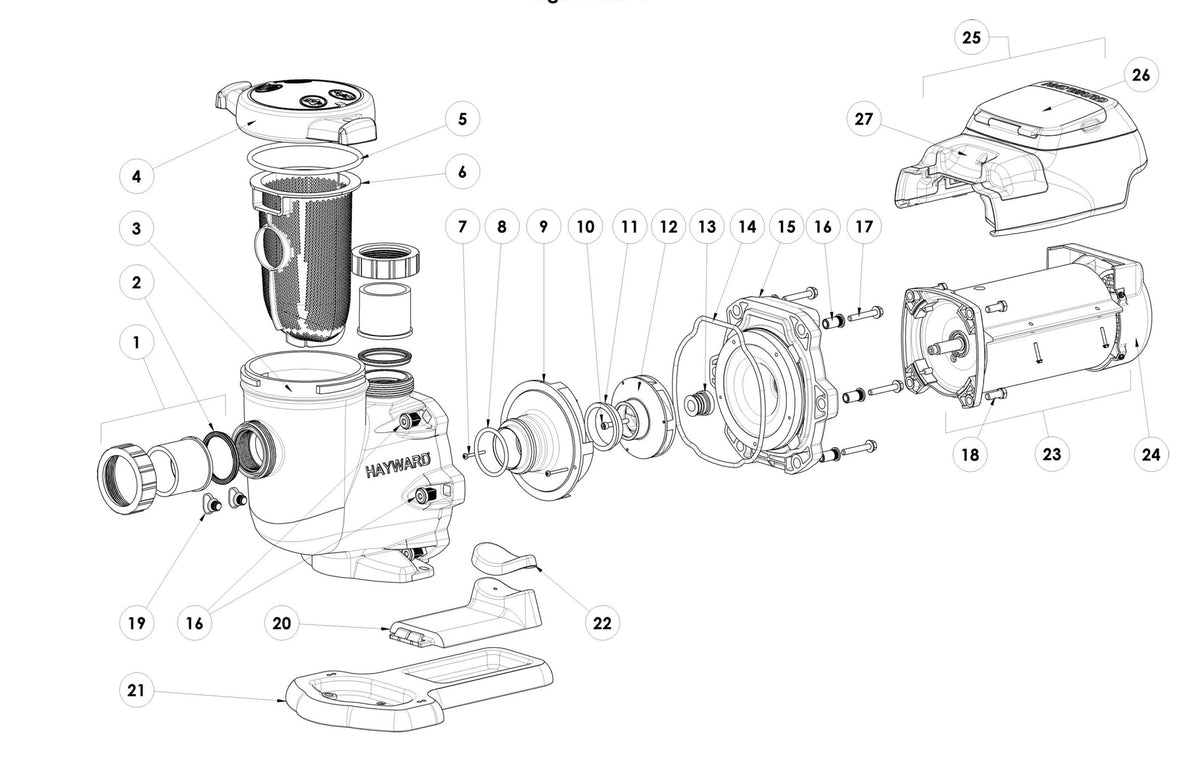

Replacement parts and exploded parts diagram for the Hayward TriStar VS 950 Variable Speed Pump 2.7HP (model SP32950VSP). Find the part on the diagram, then look for the same number (#) next to each part in the Available Parts list and add the parts you need to your cart.
Parts marked Alternate are compatible replacements from other manufacturers.
Other Parts on This Diagram
These parts are not listed for online purchase. Contact us with the diagram number and part number to order.
- #4 – SPX3200DLSB – Tristar Biguanide Strainer Cover Kit (Biguanide Sanitizer Applications Only; NOT Pressure Testable )
- #7 – SPX3200Z8 – 2/SET SP3200X Diffuser Screw
- #8 – SPX4000Z1 – Tristar/ Ecostar/ Northstar Diffuser Oring
- #10 – SPX3200Z1 – Tristar Impeller Screw
- #11 – SPX3021R – 2HP-3HP FR Super II Impeller Ring
- #14 – SPX3200T – Tristar Housing Oring
- #16 – SPX3200Z211 – Tristar Pump Housing Insert & Spacer Kit
- #17 – SPX3200Z3 – Tristar SP3200X Housing Bolt
- #18 – SPX3200Z5 – Tristar Pump Motor Bolt
- #19 – SPX4000FG – .25" Drain Plug W/ Gasket
- #20 – SPX3200GA – Tristar SP3200X Motor Support Bracket
- #24 – SPX3400FAN – Ecostar Motor Fan Shroud
- #26 – SPX3400DR4 – SP26115VSP Motor Drive Display Cover
- #27 – SPX3400DR2 – Ecostar Motor Drive Wiring Cover
- - – SPX3400LCD – Ecostar DIG Ctrl Interface Assy
Please confirm your model number matches your existing equipment before ordering.
