Hayward HCP 3000 Series Pump 5HP 208-230/460V HCP30503 Parts & Diagram

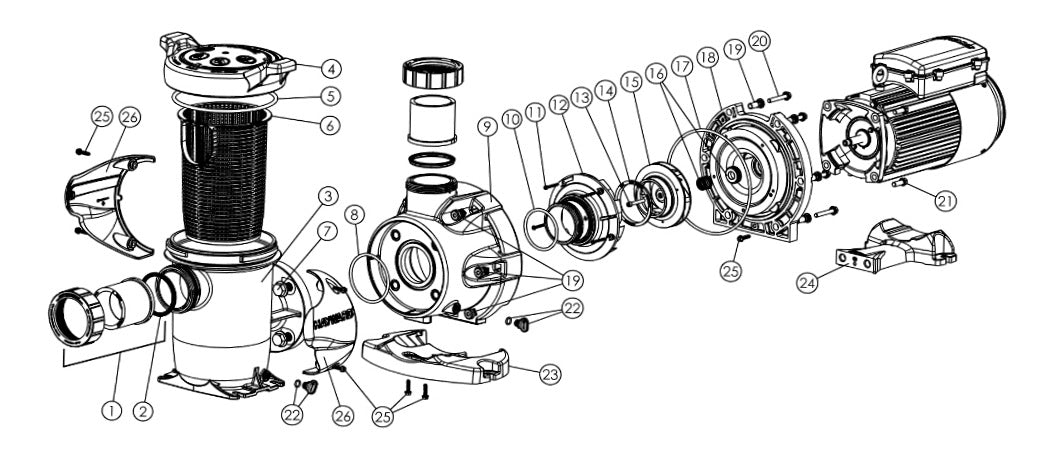

Replacement parts and exploded parts diagram for the Hayward HCP 3000 Series Pump 5HP 208-230/460V (model HCP30503). Find the part on the diagram, then look for the same number (#) next to each part in the Available Parts list and add the parts you need to your cart.
Parts marked Alternate are compatible replacements from other manufacturers.
Other Parts on This Diagram
These parts are not listed for online purchase. Contact us with the diagram number and part number to order.
- #2 – HCXP3000UG – 2/SET Union Gasket
- #3 – HCXP3000H – Strainer Housing W/ Plug
- #4 – HCXP3000DLS – Strainer Cover Kit
- #7 – HCXP3000Z3 – Strainer Housing Flange Bolt/Washer
- #9 – HCXP3000A – Pump Housing W/ Drain Plug
- #11 – SPX2700Z3SSPAK4 – 4/PK Diffuser Screw
- #13 – SPX3200Z1 – Tristar Impeller Screw
- #19 – SPX3200Z211 – Tristar Pump Housing Insert & Spacer Kit
- #20 – SPX3200Z3 – Tristar SP3200X Housing Bolt
- #21 – SPX3200Z34PAK4 – 4/PK Motor Bolt
- #22 – SPX4000FG – .25" Drain Plug W/ Gasket
- #23 – HCXP3000F – Pump Housing Base
- #24 – HCXP3000G – Motor Support Base
- #25 – SPX1600Z5SSPAK7 – 7/PK Base Screw
- #26 – HCXP3000N250 – Platinum Side Plate SET
- #26 – HCXP3000N251 – Blue Side Plate SET
- - – HCXP3020Z1M – 2HP 208-230V Motor
- - – HCXP3020Z1D – 2HP 208-230/460V 3PH Motor
- - – HCXP3030Z1D – 3HP 208-230/460V 3PH Motor
- - – HCXP3050Z1D – 5HP 208-230/460V 3PH Motor
- - – HCXP3020Z1DC – 2HP 575V 3PH Motor
- - – HCXP3030Z1DC – 3HP 575V 3PH Motor
- - – HCXP3050Z1DC – 5HP 575V 3PH Motor
- - – HCXP3075Z1DC – 7HP 575V 3PH Motor
Please confirm your model number matches your existing equipment before ordering.
GTIN:
SKU: DIAGRAM-HCP30503
Brand: Hayward
Price range
$7.20 - $2,093.29
Tax and shipping are calculated at checkout.
Expert Support
Secure Checkout
Quality Guaranteed
Fast Shipping 3-5 Days
Key Features
- Exploded parts diagram for the Hayward HCP 3000 Series Pump 5HP 208-230/460V (model HCP30503)
- 27 replacement parts available to order online
- Diagram number shown next to every part for easy matching
- Genuine Hayward parts plus compatible alternates
- Add multiple parts to your cart at once
