Hayward Booster Pump .75HP W36060 Parts & Diagram

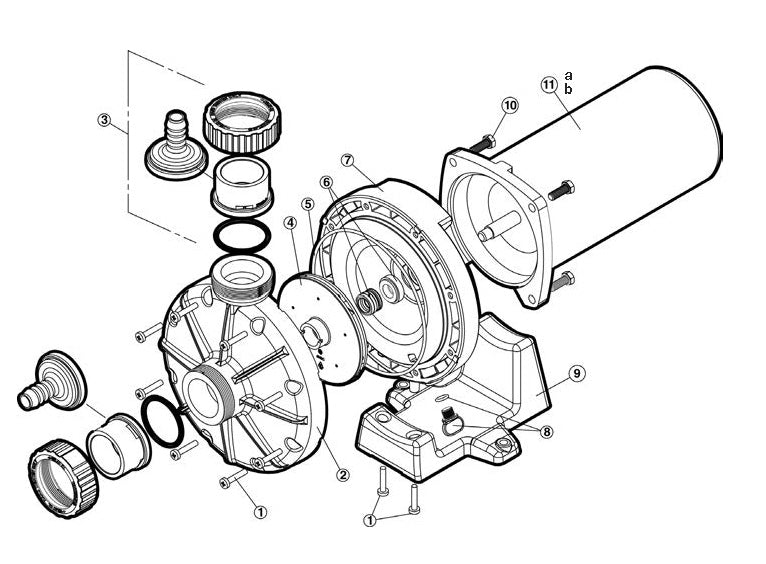

Replacement parts and exploded parts diagram for the Hayward Booster Pump .75HP (model W36060). Find the part on the diagram, then look for the same number (#) next to each part in the Available Parts list and add the parts you need to your cart.
Parts marked Alternate are compatible replacements from other manufacturers.
Other Parts on This Diagram
These parts are not listed for online purchase. Contact us with the diagram number and part number to order.
- #1 – AX6060Z1 – .25"x1.25" Type B Screw
- #2 – AX6060A – 6060 Booster Pump Pump Volute
- #3 – AX6060UNPAK – 6060 Union Fittings Kit (2 Unions with O-Rings )
- #4 – AX6060C – 6060 Impeller
- #5 – AX6060S – 6060 Seal Plate Oring
- #6 – SPX2700SA – Maxflo XL/ Maxflo II Shaft Seal
- #7 – AX6060E – 6060 Seal Plate Assy (Seal Plate with Drain Plug and O-Ring )
- #8 – SPX4000FG – .25" Drain Plug W/ Gasket
- #9 – AX6060G – 6060 Booster Pump Motor Support
- #10 – SPX3200Z5 – Tristar Pump Motor Bolt
- #11b – SPX2707Z1B – .75HP Viio Turbo Sqfl Motor (6060 Motor; 3/4 H.P., 60 Cycles )
- - – SPX1495Z1 – Powerflo Union Connector Oring
Please confirm your model number matches your existing equipment before ordering.
