• Pentair Quad 60 DE Pool Filter - 188592

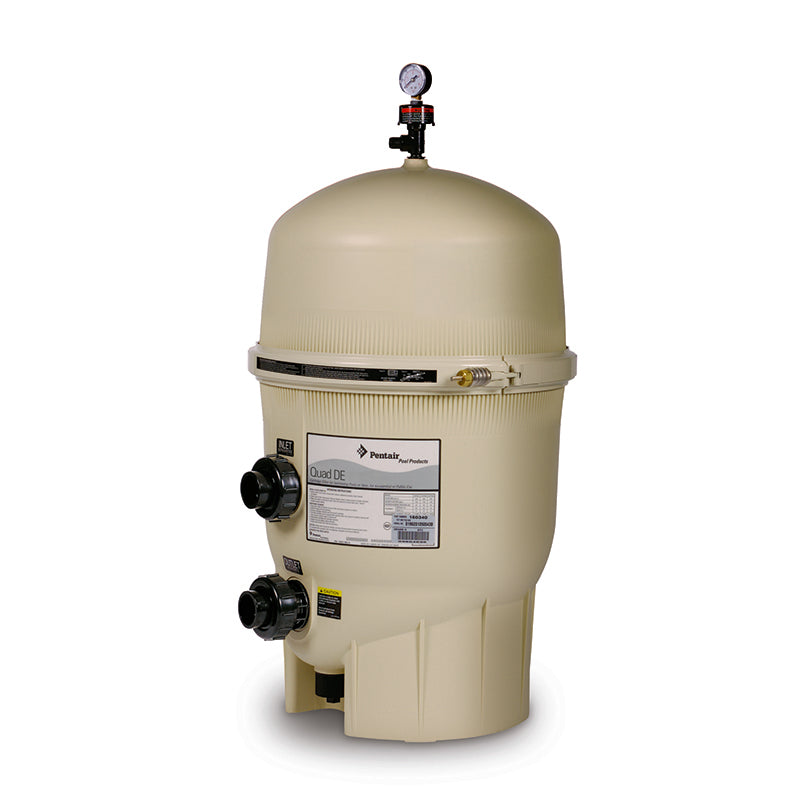

Pentair Quad 60 DE Pool Filter - 188592

Pentair Quad D.E. Pool Filter 188592. Model 188592 is 60 sq. ft. Model 188593 is 80 sq. ft. Model 188594 is 100 sq. ft.

Quad D.E. Filter Specifications

Model Filter Area (sq ft) Flow Rate (GPM) 8-Hr Turnover (gal) 10-Hr Turnover (gal) 12-Hr Turnover (gal) D.E. Required (lbs) Carton Qty Carton Wt (lbs)
188592 Quad D.E. 60 60 120 57,600 72,000 86,400 6 1 60
188593 Quad D.E. 80 80 160 76,800 96,000 115,200 8 1 69
188594 Quad D.E. 100 100 160 76,800 96,000 115,200 10 1 78

These don't come with a valve. You don't need a valve but can order one. If you don't use D.E. you don't need a valve. You can just open the filter and clean the cartridges. The Pentair Quad D.E. filter offers the crystal clarity of D.E. with cartridge convenience. Diatomaceous earth (D.E.) filter have always been recognized for providing the cleanest pool water. And cartridge filter are popular for their convenience and easy-cleaning features. Now Pentair has found a way to bring you the best of both. The new Quad D.E., Filter features four easily accessible and removable D.E. cartridges. When water passes through these cartridges, microscopic impurities like dirt, algae, and some forms of bacteria are filtered out, giving you water that really sparkles. The four-cartridge design greatly increases the filter's internal surface area, meaning much greater cleaning capacity per cycle without an increase in canister size. And cleaning couldn't be easier. In fact, you have three options backwash and recharge like a traditional D.E. filter, remove and rinse off the cartridges, or simply remove the lid, leave the cartridges in place, open the drain plug, and rinse. You will even save money water flows through the Quad D.E. so efficiently that your pump uses less energy. Four large-capacity cartridges provide maximum filter surface area for greater dirt-trapping capacity and longer periods between cleanings. Unique internal flow path ensures optimum filtration and backwashing efficiency. Chemical resistant, fiberglass reinforced polypropylene tank for exceptional strength and long life. Easily removable cartridge elements to simplify maintenance and save you time.

GTIN: 788379723644
SKU: 188592
Brand: Pentair
  • Pick up in our Moorpark store for only $1249.
$1,499.00
Tax calculated at checkout.
In stock
  • Free Shipping On orders over $75
  • 30-Day Returns Easy return policy
  • Amazing Support Monday – Friday

Pentair Quad D.E. Pool Filter 188592. Model 188592 is 60 sq.ft.Model 188593 is 80 sq.ft.Model 188594 is 100 sq.ft.QUAD D.E. FILTERS Turnover Capacity (In Gallons) ProductModelEffective Filtration Area (Sq Ft)Flow Rate (GPM)8 Hour10 Hour12 hourD.E. Required (Lbs)Carton QtyCarton Wt (Lbs)188592 Quad D.E. 606012057,60072,00086,4006160188593 Quad D.E. 808016076,80096,000115,2008169188594 Quad D.E. 10010016076,80096,000115,20010178. These don't come with a valve. You don't need a valve but can order one. If you don't use D.E. you don't need a valve. You can just open the filter and clean the cartridges. The Pentair Quad The crystal clarity of D.E. with cartridge convenience. Diatomaceous earth (D.E.) filter have always been recognized for providing the cleanest pool water. And cartridge filter are popular for their convenience and easy-cleaning features. Now Pentair has found a way to bring you the best of both. The new Quad D.E., Filter features four easily accessible and removable D.E. cartridges. When water passes through these cartridges, microscopic impurities like dirt, algae, and some forms of bacteria are filtered out, giving you water that really sparkles. The four-cartridge design greatly increases the filter's internal surface area, meaning much greater cleaning capacity per cycle without an increase in canister size. And cleaning couldn't be easier. In fact, you have three options backwash and recharge like a traditional D.E. filter, remove and rinse off the cartridges, or simply remove the lid, leave the cartridges in place, open the drain plug, and rinse. You will even save money water flows through the Quad D.E. so efficiently that your pump uses less energy. Four large-capacity cartridges provide maximum filter surface area for greater dirt-trapping capacity and longer periods between cleanings. Unique internal flow path ensures optimum filtration and backwashing efficiency. Chemical resistant, fiberglass reinforced polypropylene tank for exceptional strength and long life. Easily removable cartridge elements to simplify maintenance and save you time.

Key Features

  • Four large-capacity cartridges provide maximum filter surface area for greater dirt-trapping capacity and longer periods between cleanings
  • Unique internal flow path ensures optimum filtration and backwashing efficiency
  • Chemical resistant, fiberglass reinforced polypropylene tank for exceptional strength and long life
  • Easily removable cartridge elements make maintenance fast and easy
  • Water flows through the Quad D.E.® cartridge style filters so efficiently that your pump will use less energy
