Polaris Vac-Sweep 3900 Sport In Ground Pressure Side Pool Cleaner, Blue/White F6 Parts & Diagram

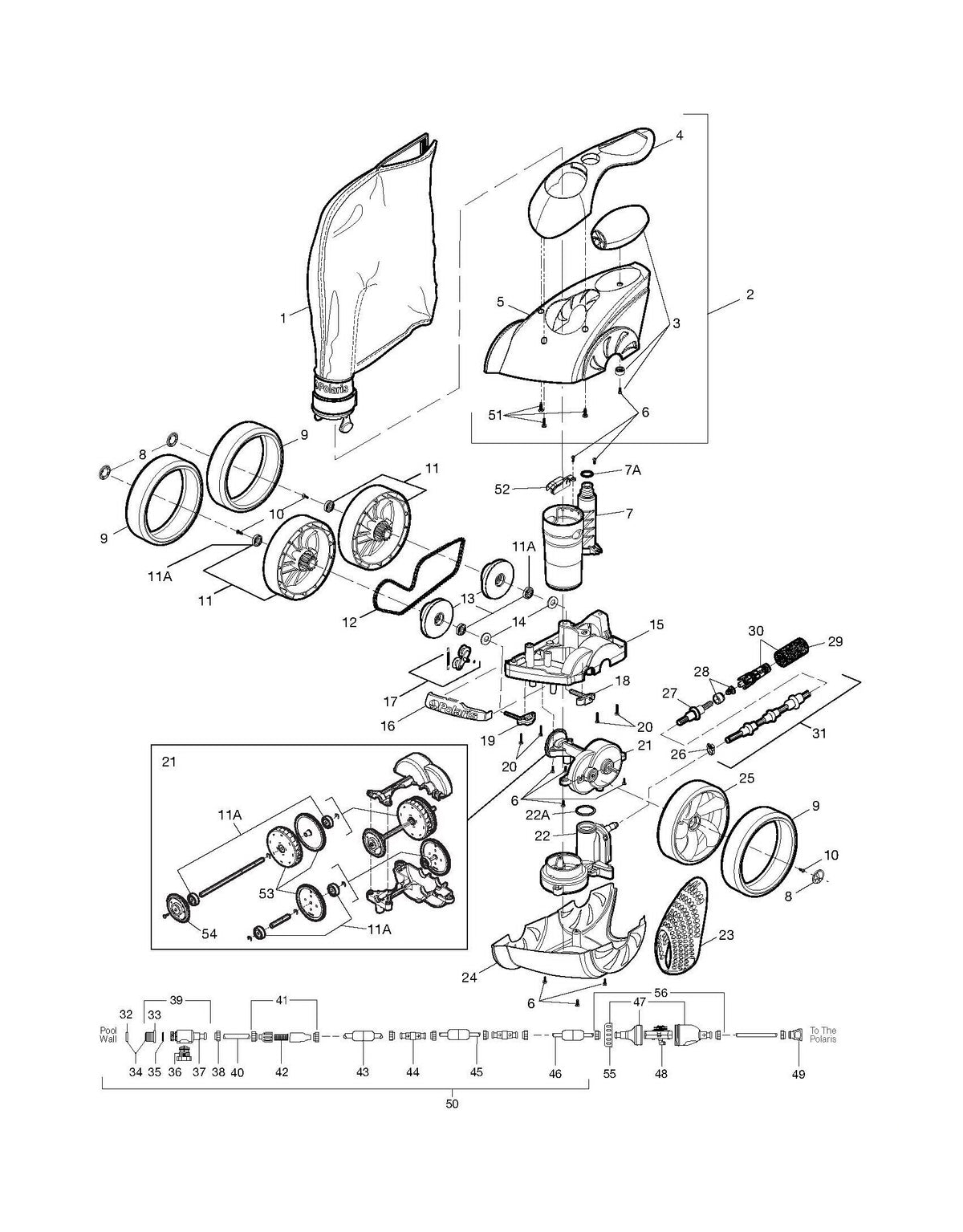

Replacement parts and exploded parts diagram for the Polaris Vac-Sweep 3900 Sport In Ground Pressure Side Pool Cleaner, Blue/White (model F6). Find the part on the diagram, then look for the same number (#) next to each part in the Available Parts list and add the parts you need to your cart.
Parts marked Alternate are compatible replacements from other manufacturers.
Other Parts on This Diagram
These parts are not listed for online purchase. Contact us with the diagram number and part number to order.
- #7 – 39-006 – Vacuum Tube/Feedpipe Assy With O-Ring
- #8 – 39-008 – Hubcap (Qty 3)
- #10 – 48-036 – Wheel Lock Screw (Qty 3)
- #12 – 39-126 – Chain
- #13 – 39-420 – Wheel Sprocket Assy w/ Bearing (Qty 2)
- #14 – 39-602 – Wheel Spacer (Qty 2)
- #16 – 39-111 – Bumper
- #17 – 39-120 – Chain Tensioner Kit
- #18 – 39-430 – Rear Axle Block Assy
- #19 – 39-440 – Front Axle Block Assy
- #20 – 48-045 – Screw, 10-32 x 7/8 SS Pan Head With Star Washer (Qty 4)
- #23 – 39-005 – Rear Housing
- #26 – B16 – Sweep Hose Attach Clamp, Black
- #27 – 39-021 – Sweep Hose Wear Ringm, Blue (Qty 8)
- #29 – 9-100-3105 – Sweep Hose Scrubber
- #32 – 10-112-00 – UWF Restrictor Disk, Red & Blue (Qty 2)
- #34 – 10-108-00 – UWF Restrictor Kit, Gray
- #35 – 6-505-00 – O-Ring, UWF
- #36 – 9-100-9006 – Pressure Relief Valve, Black
- #37 – D30 – Quick Disconnect, UWF Black
- #37A – D29 – Quick Disconnect, UWF Gray
- #41A – 48-085 – In-Line Filter Assy, Black
- #43 – D11 – Float, Feed Hose, Black (Qty 9)
- #44 – D21 – Swivel Ball Bearing, Black (Qty 3)
- #45 – D47 – Feed Hose, 10 ft., Black (Qty 2)
- #46 – D52 – Leader Hose, 10 ft., Black
- #48 – G53 – Mechanism for G52
- #49A – 48-140 – Feed Hose Connector Assembly, Gray
- #50A – G5 – Feed Hose Assembly Complete, Gray
- #51 – R0538200 – Screw, Self Tapping, Canopy (Qty 3)
Please confirm your model number matches your existing equipment before ordering.
GTIN:
SKU: DIAGRAM-F6
Brand: Polaris
Price range
$11.00 - $179.00
Tax and shipping are calculated at checkout.
Expert Support
Secure Checkout
Quality Guaranteed
Fast Shipping 3-5 Days
Key Features
- Exploded parts diagram for the Polaris Vac-Sweep 3900 Sport In Ground Pressure Side Pool Cleaner, Blue/White (model F6)
- 37 replacement parts available to order online
- Diagram number shown next to every part for easy matching
- Genuine Polaris parts plus compatible alternates
- Add multiple parts to your cart at once
