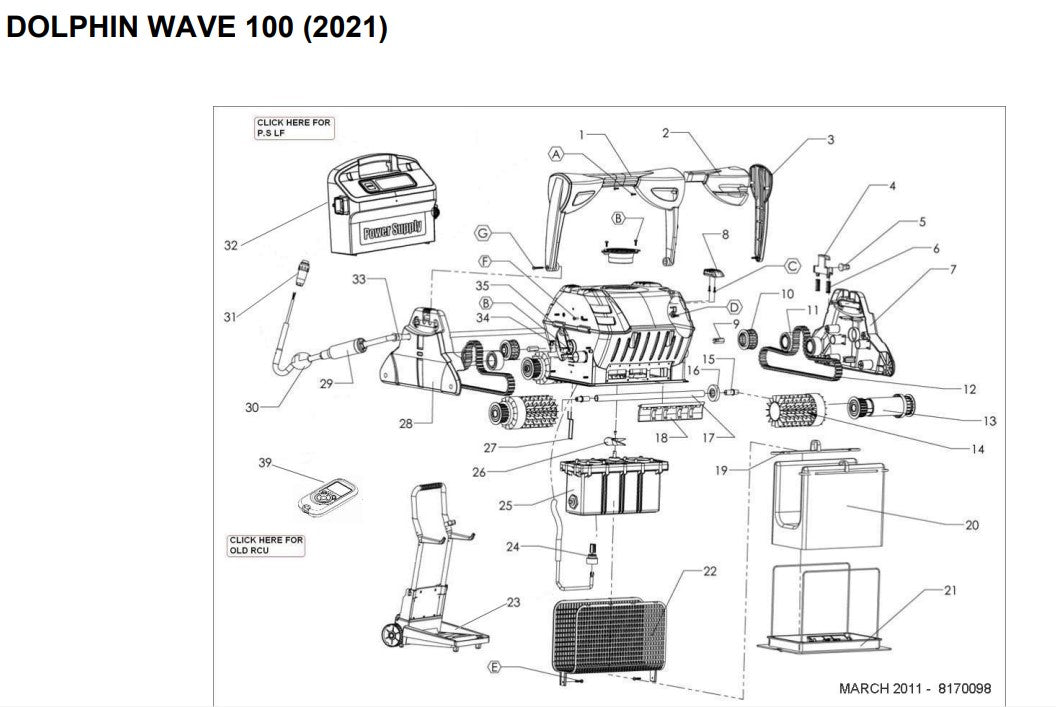

Maytronics Dolphin Wave 100 Robotic Pool Cleaner 9999096X-USW Parts & Diagram

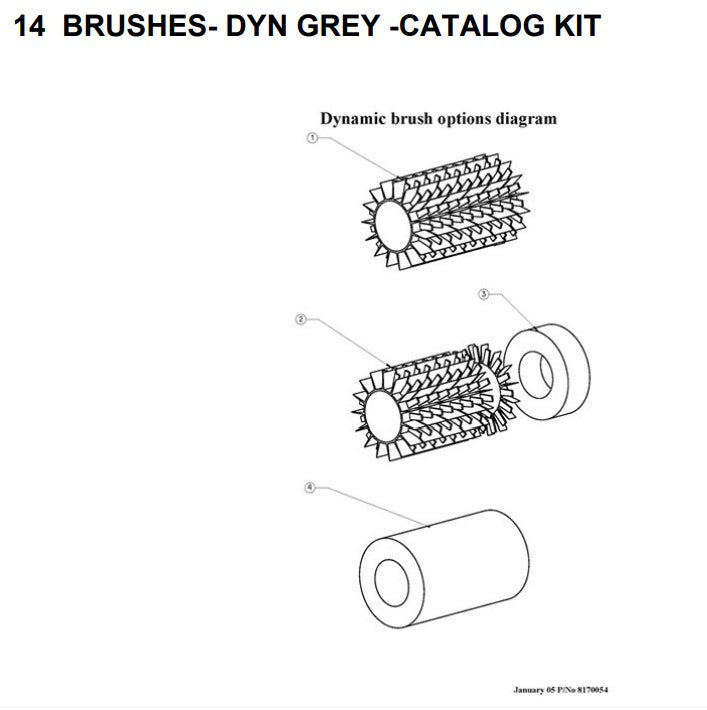

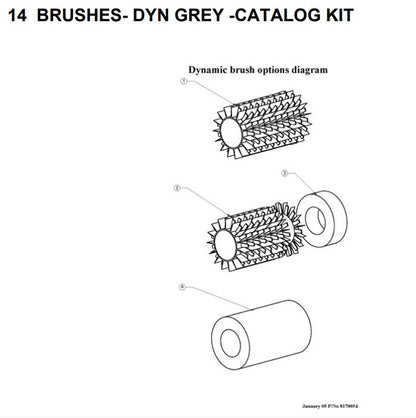

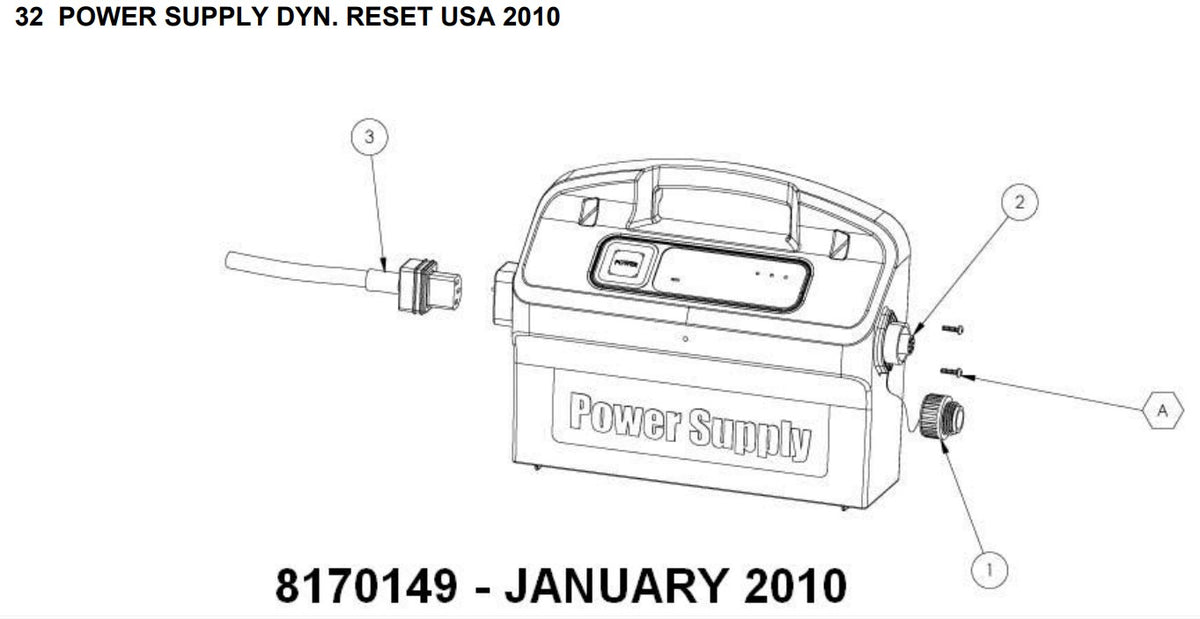

Replacement parts and exploded parts diagram for the Maytronics Dolphin Wave 100 Robotic Pool Cleaner (model 9999096X-USW). Find the part on the diagram, then look for the same number (#) next to each part in the Available Parts list and add the parts you need to your cart.
Parts marked Alternate are compatible replacements from other manufacturers.
Other Parts on This Diagram
These parts are not listed for online purchase. Contact us with the diagram number and part number to order.
- #01.10 – 9995721 – Handle Assy Wave 100
- #01.11 – 99951713 – Outer Casing FOR Wave 100
- #01.11.20 – 9991069-ASSY – Cable Holder Kit
- #02.02.D – 3154414-A – Screw M4X14 - 7985 -Mtil
- #03.29 – 3917031 – Handle Clip Spring
- #03.30 – 9985057 – Handle Latch-Black
- #03.31 – 9985065 – Handle ARM Slide
- #03.33 – 9995043 – Side Panel ASSY&SLEEVE Wave 100

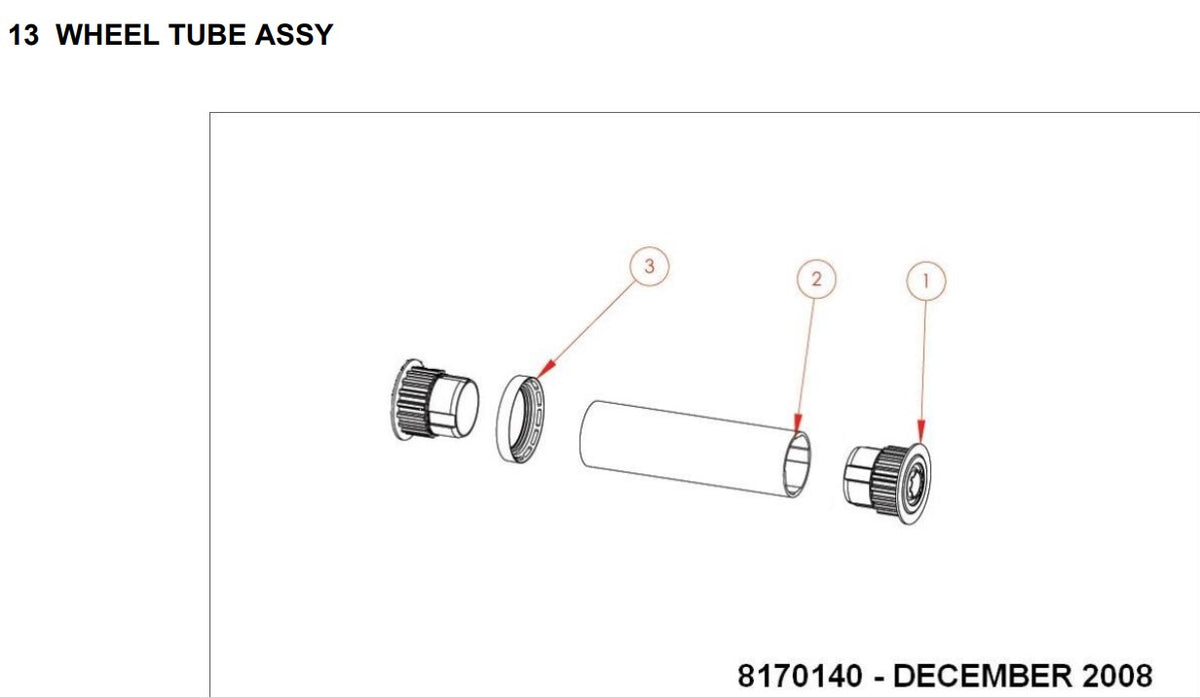

- #03.34.90 – 3885000 – Wheel Bearing Stopper Ring
- #04.05.D – 3379720-A – Screw - KA50X20 - Mtil
- #04.41 – 9981430 – Filter Bag Clip
- #04.43.43.A – 3303008-A – Screw KA30X8 WN1412 A2

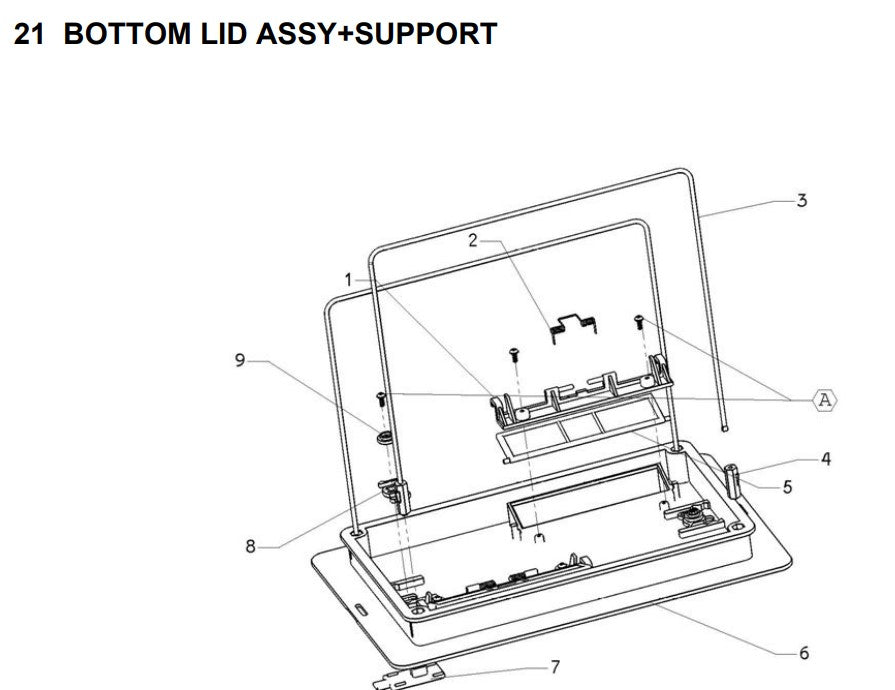

- #04.43.48 – 9985443 – *IN Kit 9995892**** Spring FOR Bottom Lid
- #04.43.49 – 9981242 – Washer FOR Spring **INCLUDED IN Kit 9995892**
- #04.44 – 9995430-ASSY – Filter Bag 50 Micron
- #06.103 – 5020012 – Amphenol Socket Cover FOR Power Supply
- #07.112 – 9995090 – Cable Float Assy - Small

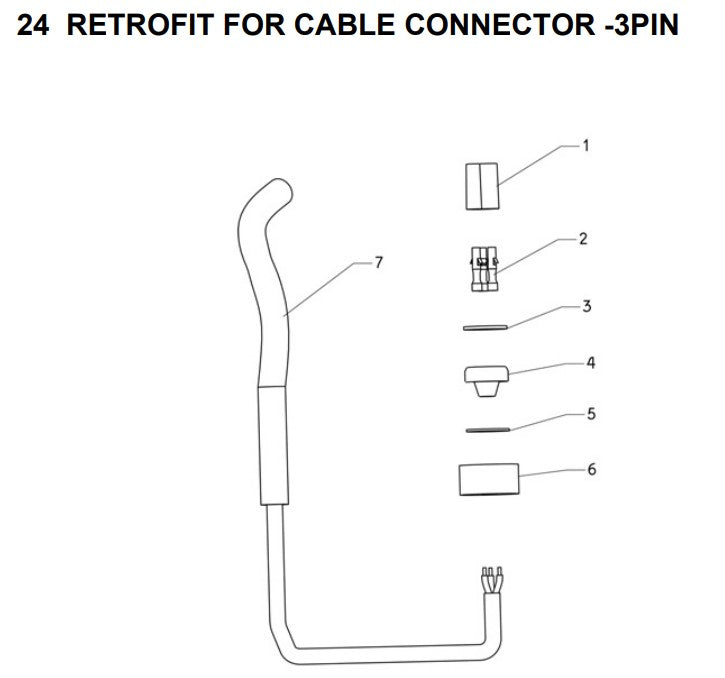

- #07.113.110 – 9991273 – Retrofit FOR Cable Conn 2010 M4,M5,WAVE65,WAVE90
- #07.113.110.140 – 1811404 – Cable Connector
- #07.113.110.145 – 9985048 – Cable CONN.THREE Pin
- #08.130.120 – 9991503-ASSY – Screw Kit FOR 9996098-ASSY

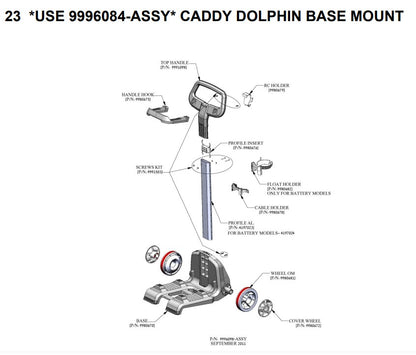

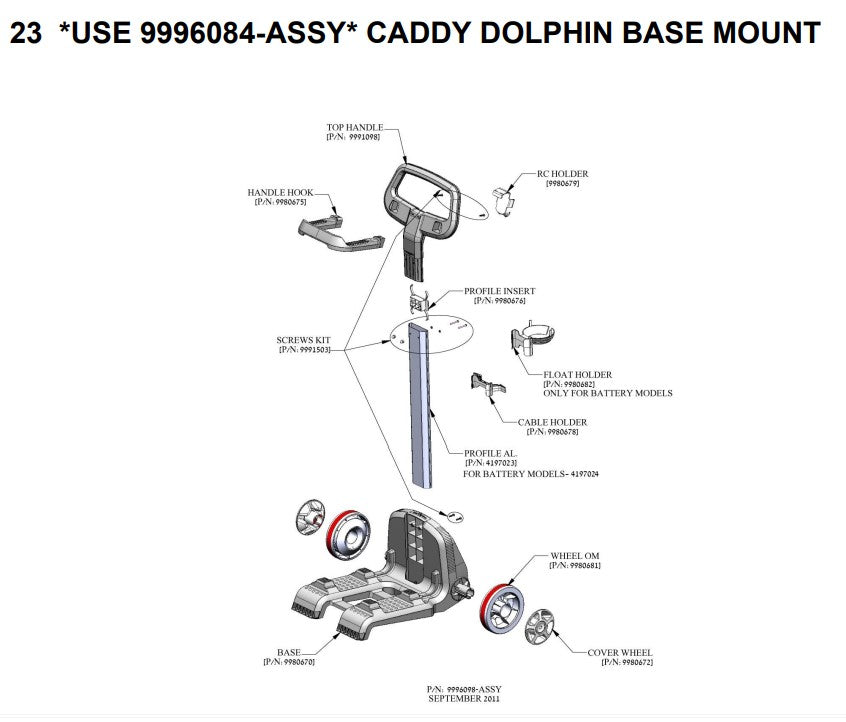

- #08.130.121 – 9991098 – Top Handle
- #08.130.122 – 9980675 – Handle Hook
- #08.130.123 – 9983202 – Caddy Adaptor FOR Power Supply ON Universal Caddy
- #08.130.124 – 4197023-ASSY – Profile AL. Caddy + Insert Assy
- #08.130.125 – 9983203 – Cover FOR Power Supply Housing ON Universal Caddy
- #08.130.126 – 9983181 – Caddy Adapter FOR 2015 Line ON Universal Caddy
- #08.130.127 – 9980672 – Wheel Cover NEW Caddy
- #08.130.128 – 9980670 – Base Caddy
- #08.130.129 – 9980681 – Wheel FOR Caddy OM
- #08.131 – 9980679 – RCU Holder FOR 9996098-ASSY
Please confirm your model number matches your existing equipment before ordering.
