Hayward DV5000 Diaphragm Disc Suction Pool Cleaner W3DV5000 Parts & Diagram

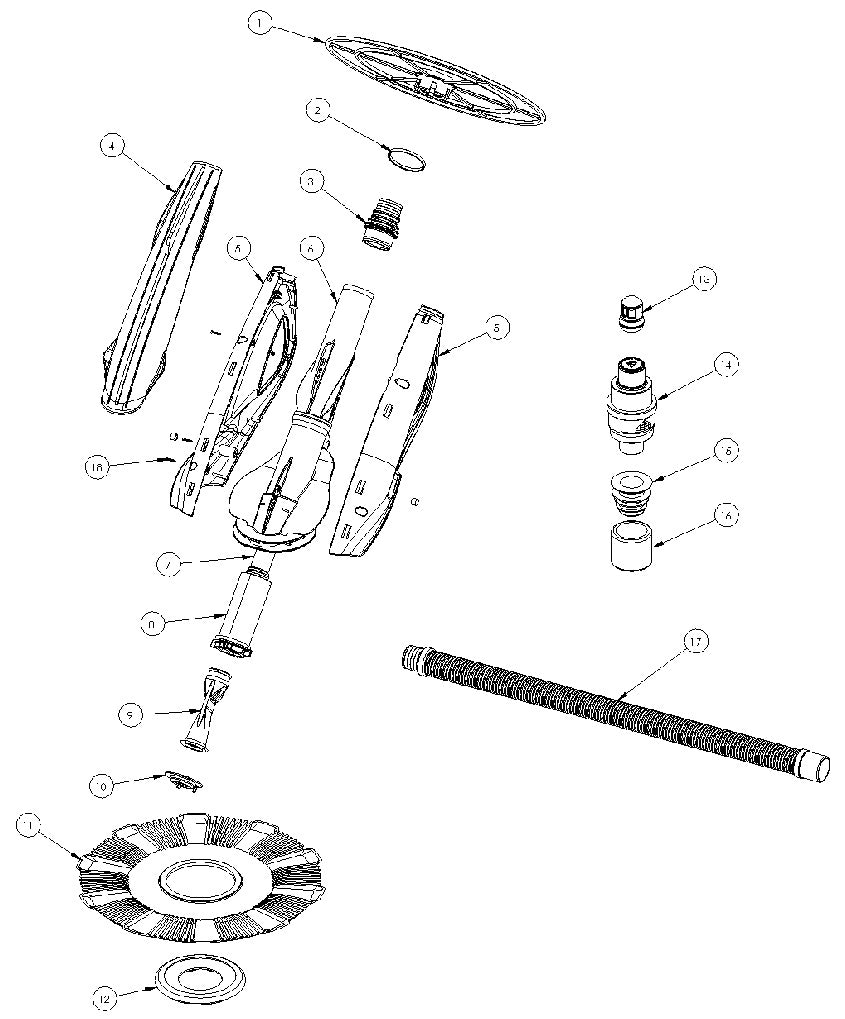

Replacement parts and exploded parts diagram for the Hayward DV5000 Diaphragm Disc Suction Pool Cleaner (model W3DV5000). Find the part on the diagram, then look for the same number (#) next to each part in the Available Parts list and add the parts you need to your cart.
Parts marked Alternate are compatible replacements from other manufacturers.
Other Parts on This Diagram
These parts are not listed for online purchase. Contact us with the diagram number and part number to order.
- #1 – DCX110 – Kingray Halo
- #3 – DCX212 – Swivel PIT Assy
- #4 – DCX332 – Diaphragm Top Cover Kit
- #5 – DCX353 – Diaphragm Body Halves Kit
- #6 – DCX315 – Diaphragm Body Kit
- #7 – DCX108 – Kingray Internal Tube
- #8 – DCX105 – Kingray Cassette Assy
- #10 – DCX106 – Kingray Cassette Retainer
- #11 – DCX152 – Kingray Disc Seal
- #12 – DCX150 – Kingray / Sunray Foot
- #13 – DCX170 – Kingray / Sunray Eyeball Diverter
- #14 – DCX180 – Kingray / Sunray Flow Regulator W/ Bypass Lid
- #16 – DCX174 – Kingray Hose Weight
Please confirm your model number matches your existing equipment before ordering.
GTIN:
SKU: DIAGRAM-W3DV5000
Brand: Hayward
Price range
$30.84 - $46.00
Tax and shipping are calculated at checkout.
Expert Support
Secure Checkout
Quality Guaranteed
Fast Shipping 3-5 Days
Key Features
- Exploded parts diagram for the Hayward DV5000 Diaphragm Disc Suction Pool Cleaner (model W3DV5000)
- 2 replacement parts available to order online
- Diagram number shown next to every part for easy matching
- Genuine Hayward replacement parts
- Add multiple parts to your cart at once
