Waterway Mustang 2.7HP Variable Speed In-Ground Pump MS-270 Parts & Diagram

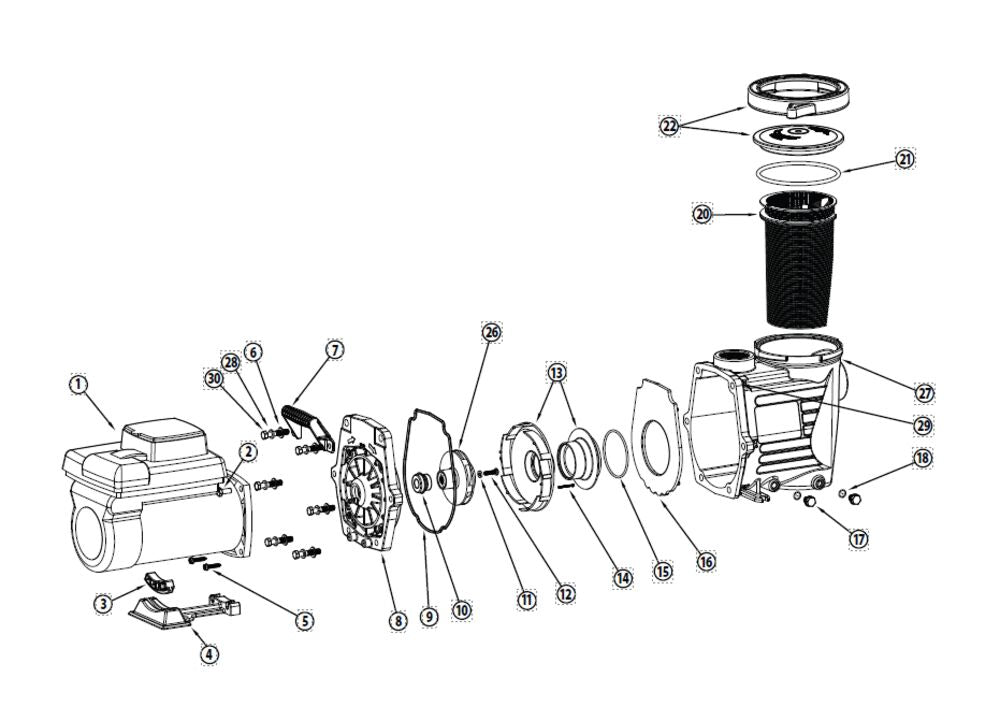

Replacement parts and exploded parts diagram for the Waterway Mustang 2.7HP Variable Speed In-Ground Pump (model MS-270). Find the part on the diagram, then look for the same number (#) next to each part in the Available Parts list and add the parts you need to your cart.
Parts marked Alternate are compatible replacements from other manufacturers.
Other Parts on This Diagram
These parts are not listed for online purchase. Contact us with the diagram number and part number to order.
- #6 – 820-0017 – 3/8" Flat Washer Type B (Pool Pumps)
- #7 – 319-1700 – Handle
- #9 – 711-1400 – Gasket, Face Plate
- #10 – 319-3100B – Pump Seal Set-Viton
- #10 – 319-3100B – Waterway Pump Seal SET
- #12 – 819-4360 – Screw Phil. Pan Head Left Hand (1/4-20 X 1")
- #13 – 310-7460 – Champe-130 Only Diffuser Assy
- #20 – 319-1430 – Basket Assy
Please confirm your model number matches your existing equipment before ordering.
