Sta-Rite SuperMax 1 Speed High Performance Pump .63HHP 1.1THP 348191 Parts & Diagram

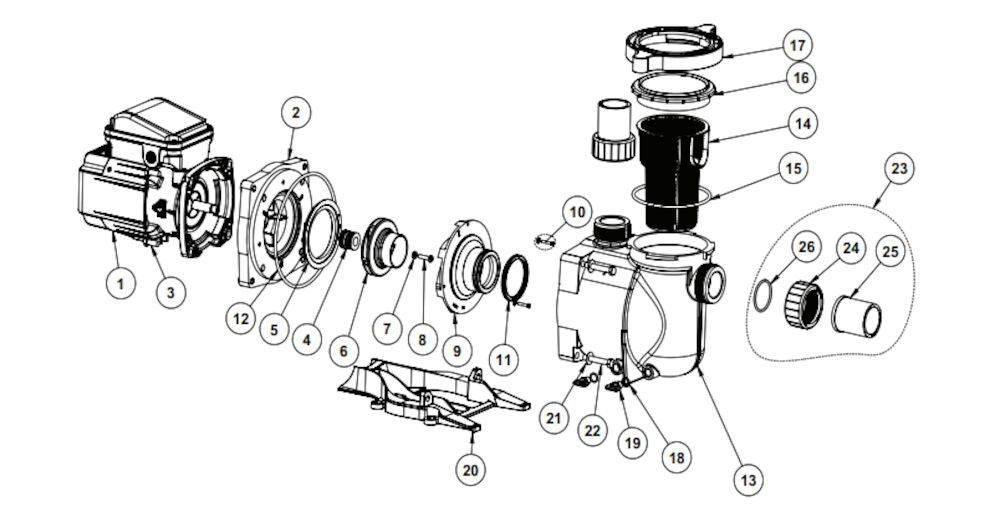

Replacement parts and exploded parts diagram for the Sta-Rite SuperMax 1 Speed High Performance Pump .63HHP 1.1THP (model 348191). Find the part on the diagram, then look for the same number (#) next to each part in the Available Parts list and add the parts you need to your cart.
Parts marked Alternate are compatible replacements from other manufacturers.
Other Parts on This Diagram
These parts are not listed for online purchase. Contact us with the diagram number and part number to order.
- #1 – 356362S – Motor
- #8 – 071652Z – SCREW, Impeller
- #10 – 356213Z – SCREW, Diffuser #8-32 x 7/8” (Qty. 3)
- #20 – 351094 – Base
- #22 – 355621 – BOLT, Strainer POT(Qty. 4)
Please confirm your model number matches your existing equipment before ordering.
GTIN:
SKU: DIAGRAM-348191
Brand: Sta-Rite
Price range
$9.50 - $247.45
Tax and shipping are calculated at checkout.
Expert Support
Secure Checkout
Quality Guaranteed
Fast Shipping 3-5 Days
Key Features
- Exploded parts diagram for the Sta-Rite SuperMax 1 Speed High Performance Pump .63HHP 1.1THP (model 348191)
- 19 replacement parts available to order online
- Diagram number shown next to every part for easy matching
- Genuine Sta-Rite parts plus compatible alternates
- Add multiple parts to your cart at once
