Raypak Hi Delta P-1532C 1530K NG IID Cold Run Heater 016090 Parts & Diagram

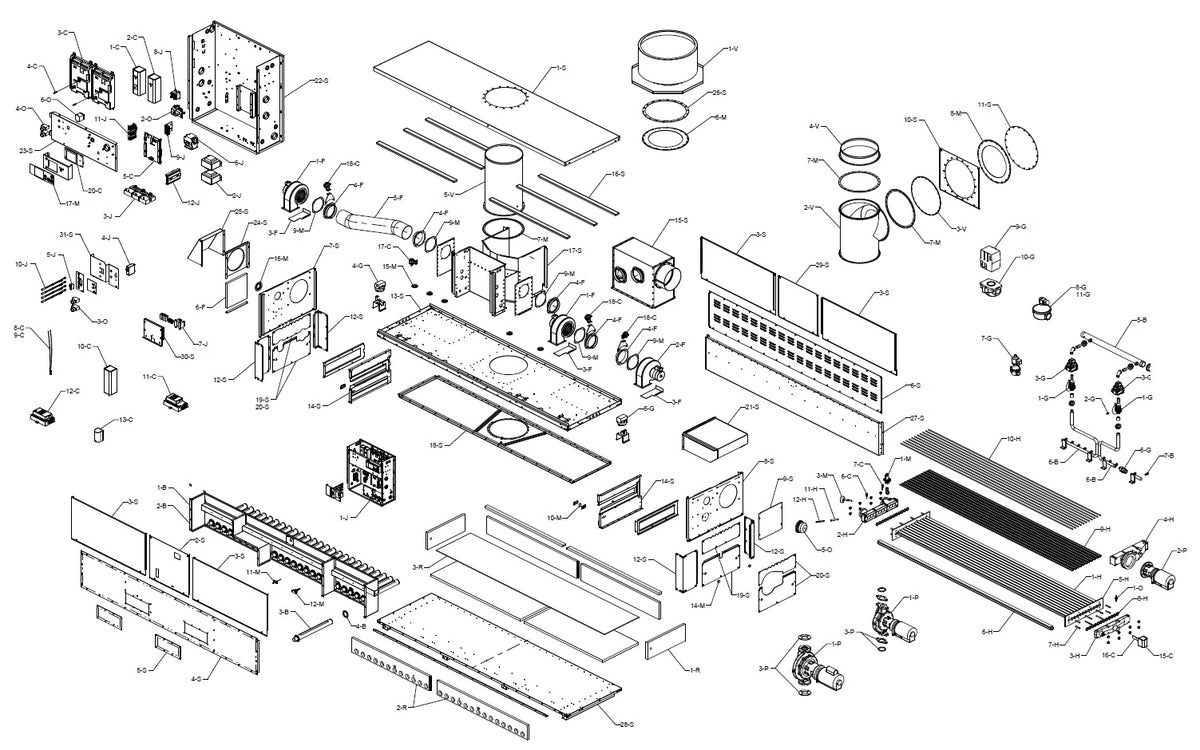

Replacement parts and exploded parts diagram for the Raypak Hi Delta P-1532C 1530K NG IID Cold Run Heater (model 016090). Find the part on the diagram, then look for the same number (#) next to each part in the Available Parts list and add the parts you need to your cart.
Parts marked Alternate are compatible replacements from other manufacturers.
Other Parts on This Diagram
These parts are not listed for online purchase. Contact us with the diagram number and part number to order.
- #1-C – 009554F – Manual-Reset Adjustable High Limit 180"F Max
- #1-G – 007189F – Valve Gas Manual A 1" (Low Gas Press.)
- #1-M – 007224F – PRV 125 PSI
- #2-J – 007494F – Transformer 100 VA
- #2-M – 052870F – Deliming Kit
- #2-P – 007348F – Pumps for (P) Pool Heaters Inline Pumps
- #3-P – 013423F – Pump Flange Gasket Taco 1600 Series Gasket Flat (2-Bolt)
- #5-J – 006872F – On/Off Switch Rocker
- #7-C – 013932F – Outlet/Limit Sensor (4-Wire)
- #8-H – 007834F – Header Gasket
- #11-H – 007211F – Sensor Well
- #12-H – 300203 – Well Retaining Clip
- #13-M – 750125 – Touch-Up Paint Green
- #13-M – 750256 – Touch-Up Paint Cool Dark Gray
- #18-C – 008171F – Switch Air Pressure Differential (Blower)
Please confirm your model number matches your existing equipment before ordering.
