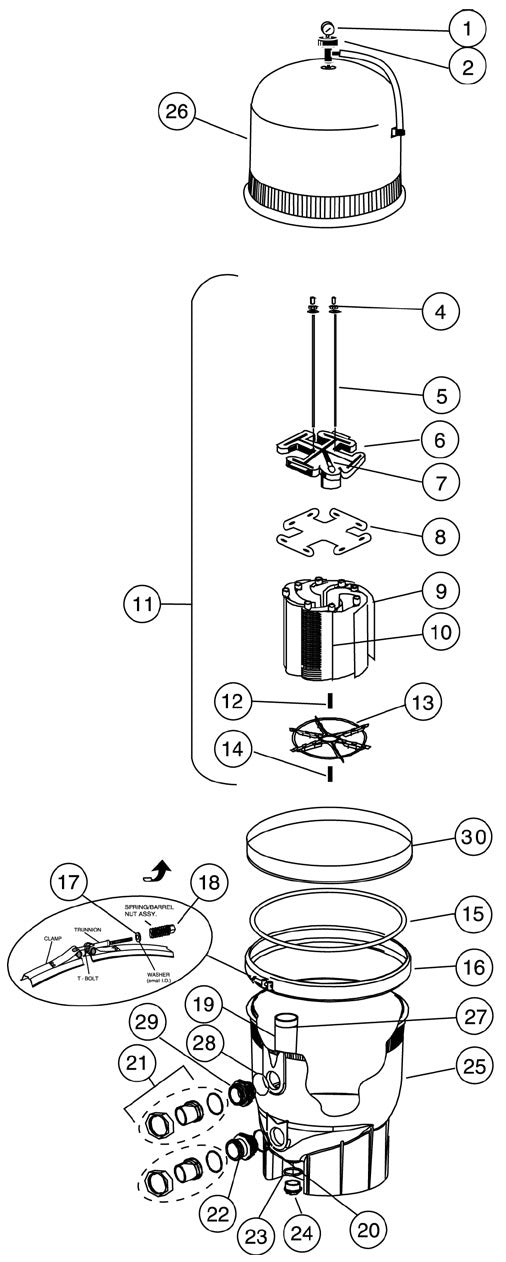

Pentair 36 SqFt FNS Plus D.E. Filter EC-180007 Parts & Diagram
Replacement parts and exploded parts diagram for the Pentair 36 SqFt FNS Plus D.E. Filter (model EC-180007). Find the part on the diagram, then look for the same number (#) next to each part in the Available Parts list and add the parts you need to your cart.
Parts marked Alternate are compatible replacements from other manufacturers.
Other Parts on This Diagram
These parts are not listed for online purchase. Contact us with the diagram number and part number to order.
- #1 – 190058Z – Gauge, Pressure
- #1 – 190058 – 1/4" NPT Pressure Gauge With Indicator
- #2 – 24850-0105 – Air Relief Valve and Gauge Kit for System 3® Filters
- #6 – 192173 – FNS Top Manifold Grid With Extension and Air Relief
- #19 – 190037 – Assembly, standpipe, outlet, 22-3/8 in. Tall
- #21 – 271096 – Bulkhead union, set (Optional)
- #22 – 190043 – Assembly, pipe, inlet, Includes Bulkhead
- #28 – 192320 – O-Ring 2-137 Buna N 70SH (Used on filters manufactured before 10/04)
- #29 – 190141 – Bulkhead Kit, 2 in. w/ O-Ring (Used on filters manufactured after 10/04)
- #30 – 195339 – SS Back-Up Ring (Used on filters manufactured after 2/03)
- Not Shown – 192019 – Wrench, Drain Plug
- Not Shown – 196019 – Parts Bag (Includes warranty card, instruction book, and items 1 and 2)
Please confirm your model number matches your existing equipment before ordering.
GTIN:
SKU: DIAGRAM-EC-180007
Brand: Pentair
Price range
$8.46 - $459.00
Tax and shipping are calculated at checkout.
Expert Support
Secure Checkout
Quality Guaranteed
Fast Shipping 3-5 Days
Key Features
- Exploded parts diagram for the Pentair 36 SqFt FNS Plus D.E. Filter (model EC-180007)
- 39 replacement parts available to order online
- Diagram number shown next to every part for easy matching
- Genuine Pentair parts plus compatible alternates
- Add multiple parts to your cart at once
