Hayward 27" Pro Series Top Mount Sand Filter with 2" Valve W3S270T2 Parts & Diagram

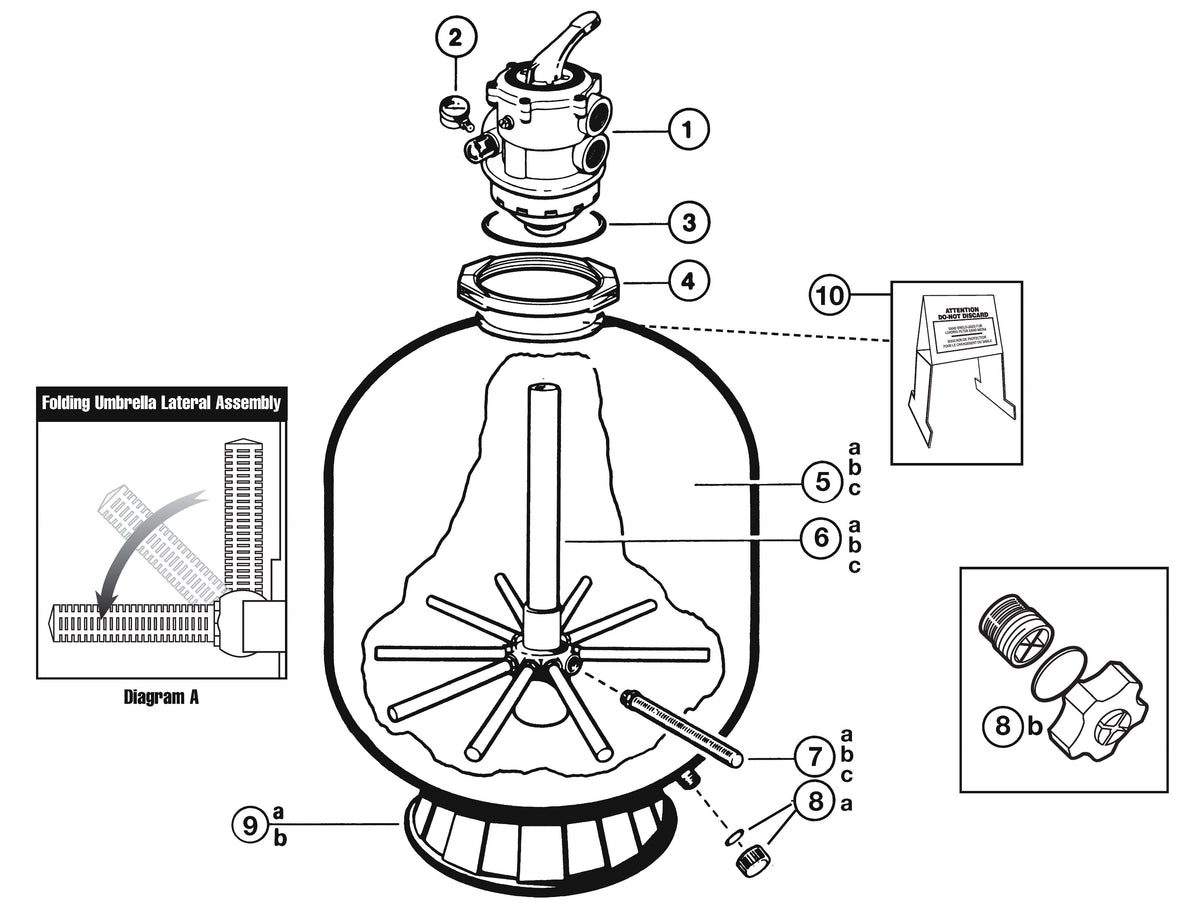

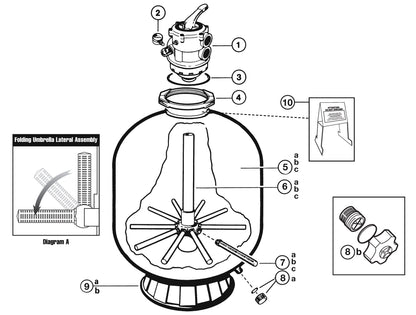

Replacement parts and exploded parts diagram for the Hayward 27" Pro Series Top Mount Sand Filter with 2" Valve (model W3S270T2). Find the part on the diagram, then look for the same number (#) next to each part in the Available Parts list and add the parts you need to your cart.
Parts marked Alternate are compatible replacements from other manufacturers.
Other Parts on This Diagram
These parts are not listed for online purchase. Contact us with the diagram number and part number to order.
- #2 – ECX270861 – Bottom Mount Pressure Gauge
- #3 – GMX600F – PRO Series Valve/Tank Oring
- #5 – SX202S – S270T2/S310T2/S360T2 Sand Shield
- #6e – SX244DA – S244T/S270T Lateral Assy W/ Center Pipe (S244T, S270T; 1997 and after )
- #7f – SX270AA1 – 27" S270T Filter Body W/ Skirt (S270T )
- #8c – SX200QN – PRO Series Lateral NEW Pivot Style (One Piece; See Diagram A )
- #8d – SX240DN – 27" Lateral NEW Pivot Style (One Piece; See Diagram A )
- #8d – SX240DNRPAK10 – S240 Pivot/Ball Lateral ( )
- #9a – SX180HG – PRO Series Drain Cap Kit (BEFORE 2006) (2005 and Prior )
- #9b – SX180LA – PRO Series Drain Cap Kit (AFTER 2005) (Cap, Gasket, Screen )
- #10 – SX200J – PRO Series Filter Stand Support (Skirt )
- ? – SX200H – S200/S160T/S240 Bottom Drain Screen (2005 and Prior )
Please confirm your model number matches your existing equipment before ordering.
