Hayward 1 1/2" MIP 3-Way Deluxe Ball Valve ABS SP0727 Parts & Diagram

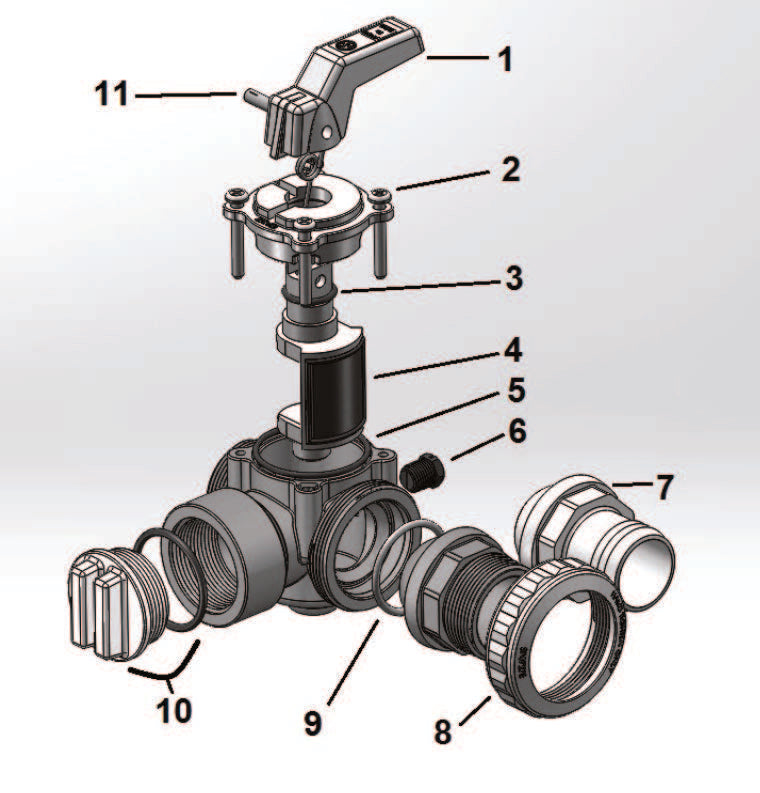

Replacement parts and exploded parts diagram for the Hayward 1 1/2" MIP 3-Way Deluxe Ball Valve ABS (model SP0727). Find the part on the diagram, then look for the same number (#) next to each part in the Available Parts list and add the parts you need to your cart.
Parts marked Alternate are compatible replacements from other manufacturers.
Other Parts on This Diagram
These parts are not listed for online purchase. Contact us with the diagram number and part number to order.
- #3 – SPX0727XZ1 – KEY O-Ring (20MM)
- #6 – SPX0710K – Pipe Plug 1/4" NPT
- #7 – SPX0727M – Union END Connector -Barbed-
- #8 – SPX0727E – Union Nut
- #10 – SP1022CBLK – Plug W/ O-RING, THD 1-1/2"
- #11 – SPX0733H – PIN, Handle
Please confirm your model number matches your existing equipment before ordering.
GTIN:
SKU: DIAGRAM-SP0727
Brand: Hayward
Price range
$2.61 - $31.71
Tax and shipping are calculated at checkout.
Expert Support
Secure Checkout
Quality Guaranteed
Fast Shipping 3-5 Days
Key Features
- Exploded parts diagram for the Hayward 1 1/2" MIP 3-Way Deluxe Ball Valve ABS (model SP0727)
- 8 replacement parts available to order online
- Diagram number shown next to every part for easy matching
- Genuine Hayward parts plus compatible alternates
- Add multiple parts to your cart at once
