Hayward 1 1/2" FPT 2-Way Trimline Ball Valve SP0722PAK Parts & Diagram

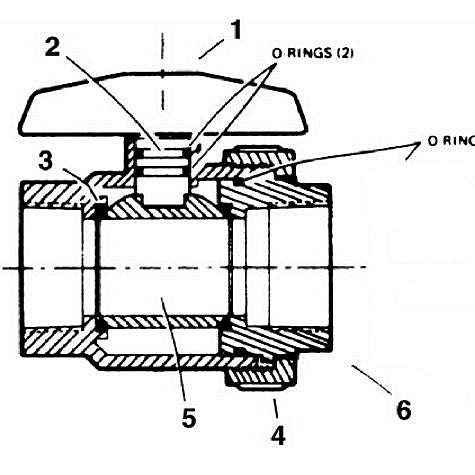

Replacement parts and exploded parts diagram for the Hayward 1 1/2" FPT 2-Way Trimline Ball Valve (model SP0722PAK). Find the part on the diagram, then look for the same number (#) next to each part in the Available Parts list and add the parts you need to your cart.
Parts marked Alternate are compatible replacements from other manufacturers.
Other Parts on This Diagram
These parts are not listed for online purchase. Contact us with the diagram number and part number to order.
- #1 – SPX0722F – Trimline Ball Valve Handle
- #2 – SPX0722B7 – Stem
- #3 – SPX0720P2 – 2/PK SP0720/SP0730 Ball Valve Teflon Ball Seal
- #3 – SPX0722P2 – 2/PK SP0722/SP0723 Ball Valve Teflon Ball Seal
- #3 – SPX0722GH – Slide Valve Bonnet Oring Kit
- #4 – SPX0722D – SP0410X Slide VLV Bonnet Nut
- #5 – SPX0722C7 – Ball
- #6 – SPX0722ET7 – FIP SP0722/0723/UN END Connector
- #6 – SPX0722ES7 – SKT SP0722/0723/UN END Connector
- #6 – SPX0723ET7 – END Connector Threaded Male
- #6 – SPX0722US – Union Connection 1.5"
- #6 – SPX0723UT – Union END Connector MIP UN
- #6 – SPX1495Z1 – Powerflo Union Connector Oring
Please confirm your model number matches your existing equipment before ordering.
GTIN:
SKU: DIAGRAM-SP0722PAK
Brand: Hayward
Price range
$7.47 - $21.80
Tax and shipping are calculated at checkout.
Expert Support
Secure Checkout
Quality Guaranteed
Fast Shipping 3-5 Days
Key Features
- Exploded parts diagram for the Hayward 1 1/2" FPT 2-Way Trimline Ball Valve (model SP0722PAK)
- 4 replacement parts available to order online
- Diagram number shown next to every part for easy matching
- Genuine Hayward parts plus compatible alternates
- Add multiple parts to your cart at once
