Pentair Ultratemp Heat Pump 125K BTU 460833 Parts & Diagram

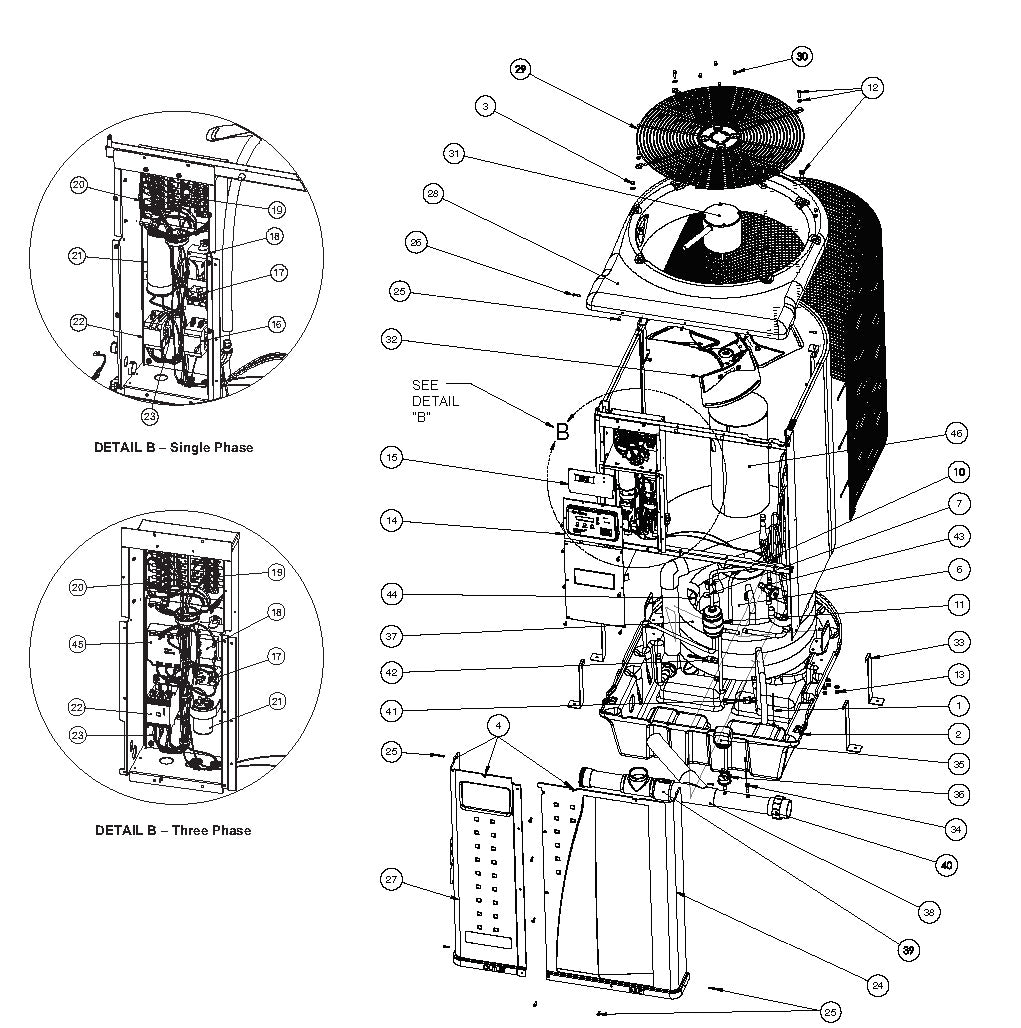

Replacement parts and exploded parts diagram for the Pentair Ultratemp Heat Pump 125K BTU (model 460833). Find the part on the diagram, then look for the same number (#) next to each part in the Available Parts list and add the parts you need to your cart.
Parts marked Alternate are compatible replacements from other manufacturers.
Other Parts on This Diagram
These parts are not listed for online purchase. Contact us with the diagram number and part number to order.
- #2 – 470284 – Nut J Clip
- #2 – 470284 – Nut J Clip
- #3 – 473285Z – Nut .25-20 SS Acorn
- #3 – 473285Z – Nut .25-20 SS Acorn
- #4 – 470281Z – Nut U Clip D06437-10 Tinnerman
- #4 – 470281Z – Nut U Clip D06437-10 Tinnerman
- #5 – 473732Z – 60HZ 1PH Compressor Wire Harness
- #5 – 473732Z – 60HZ 1PH Compressor Wire Harness
- #5 – 474010 – 3PH Compressor Wire Harness
- #6 – 473735Z – Ultratemp 110 Compressor Scroll Assy
- #6 – 474011Z – Danfoss HLJ083T2LP6 Compressor Scroll
- #6 – 476227Z – Copeland ZP61K5EPFV Compressor Scroll
- #6 – 474291Z – Copeland ZP49K5EPFV Compressor Scroll
- #7 – 473295Z – Wshr 5/16 ID 1.25 OD Fender
- #7 – 473295Z – Wshr 5/16 ID 1.25 OD Fender
- #8 – 473736 – Compr Kit Isolation Grom Scroll
- #8 – 473736 – Compr Kit Isolation Grom Scroll
- #9 – 473745Z – BLT 5/16 18X2IN SS
- #9 – 473745Z – BLT 5/16 18X2IN SS
- #10 – 98219800 – Bolt 5/16-18X1" HH 18-8 SS
- #10 – 98219800 – Bolt 5/16-18X1" HH 18-8 SS
- #12 – 470441 – Kit Fastener Fan Guard
- #12 – 470441 – Kit Fastener Fan Guard
- #19 – 473422Z – Wire Harness Fan & Terminal Block Compressor
- #19 – 473422Z – Wire Harness Fan & Terminal Block Compressor
- #20 – 473315Z – Wire Harness Term Block Sensor
- #21 – 473154Z – 473154 370V 7.5MFD 3PH Capacitor
- #23 – 475112Z – 475112 1PH Main Wire Harness
- #23 – 475112Z – 475112 1PH Main Wire Harness
- #23 – 474021Z – 474021 3PH Main Wiring Harness
- #24 – 473742Z – 473742 36" Almond Front Right Panel
- #24 – 474194Z – 474194 36" BLK Front Right Panel
- #24 – 473742Z – 473742 36" Almond Front Right Panel
- #24 – 474194Z – 474194 36" BLK Front Right Panel
- #24 – 473412Z – 473412 24" Almond Front Right Panel
- #26 – 474197 – SCR 10X1" Butn Head Torx Zinc PLT Black Head
- #26 – 474197 – SCR 10X1" Butn Head Torx Zinc PLT Black Head
- #27 – 473755 – 36" Left Panel Assy W/ Decal
- #27 – 474196 – 36" BLK Left Panel Assy W/ Decal
- #27 – 474267 – 24" BLK Front Left Panel W/ Decal
- #27 – 473755 – 36" Left Panel Assy W/ Decal
- #27 – 474196 – 36" BLK Left Panel Assy W/ Decal
- #27 – 474203 – 24" Front Left Panel W/ Decal
- #27 – 474267 – 24" BLK Front Left Panel W/ Decal
- #28 – 474193Z – 474193 BLK Heat Pump Top
- #28 – 474193Z – 474193 BLK Heat Pump Top
- #30 – 470439Z – 470439 Nut Acorn 10-32 Tall SS
- #30 – 470439Z – 470439 Nut Acorn 10-32 Tall SS
- #32 – 474322Z – 474322 Blade Fan 1100RPM
- #33 – 470137Z – 470137 Bracket TIE Down
- #33 – 470137Z – 470137 Bracket TIE Down
- #35 – 473606Z – 473606 Boot Swtch Press WTR HP
- #35 – 473606Z – 473606 Boot Swtch Press WTR HP
- #37 – 473992 – Titanium Heat Exchanger (UNITS BUILT PRIOR TO JANUARY 2017)
- #38 – 473774Z – Manifold Water Bypass Kit (UNITS BUILT PRIOR TO JANUARY 2017)
- #44 – 475194Z – 475194 Ultratemp Right Side Titanium Water Coil TIE Down (RIGHT SIDE)
- #44 – 475195Z – 475195 Ultratemp Left Side Titanium Water Coil TIE Down (LEFT SIDE)
- #44 – 475194Z – 475194 Ultratemp Right Side Titanium Water Coil TIE Down
- #44 – 475195Z – 475195 Ultratemp Left Side Titanium Water Coil TIE Down
- #45 – 474089Z – 474089 Phase Monitor
- #45 – 474089Z – 474089 Phase Monitor
- #46 – 475230Z – Compressor Blanket
- NOT SHOWN – 474237Z – 474237 Clip Retention Comp PWR
- NOT SHOWN – 473054Z – Ultratemp Coil Guard
Please confirm your model number matches your existing equipment before ordering.
