Pentair 320 SqFt Clean & Clear Plus Cartridge Filter EC-160340 Parts & Diagram

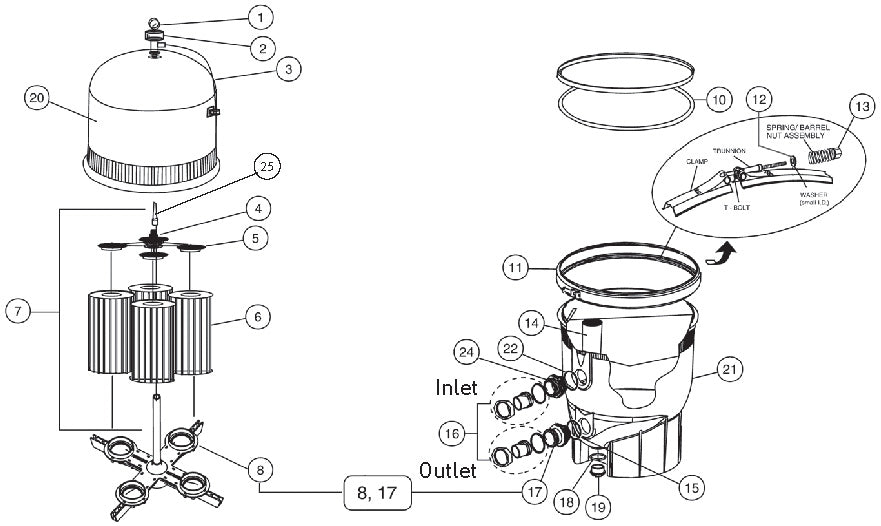

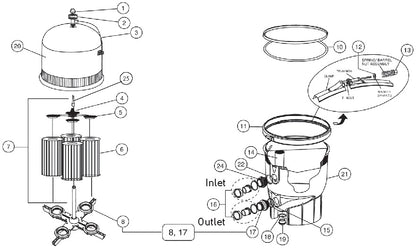

Replacement parts and exploded parts diagram for the Pentair 320 SqFt Clean & Clear Plus Cartridge Filter (model EC-160340). Find the part on the diagram, then look for the same number (#) next to each part in the Available Parts list and add the parts you need to your cart.
Parts marked Alternate are compatible replacements from other manufacturers.
Other Parts on This Diagram
These parts are not listed for online purchase. Contact us with the diagram number and part number to order.
- #1 – 190058Z – 2" .25" MPT Pressure Gauge W/ Indicator
- #1 – 190058 – 1/4" NPT Pressure Gauge With Indicator
- #2 – 24850-0105 – Air Relief Valve and Gauge Kit for System 3® Filters
- #7 – 170029 – 320SQF Clean & Clear Plus AIR Bleed Tube (Used on filters manufactured after 11/98. )
- #8 – 170040 – Clean & Clear Plus Bottom Manifold (Used on filters manufactured after 12/00. )
- #14 – 190039 – Bulkhead Baffle Assy (Used on filters manufactured after 11/98. )
- #16 – 271096 – 2"S White Valve Adapter Kit (Used on filters manufactured after 11/98. )
- #16 – 270004 – 1.5"Sx2"SPG Valve Adapter Kit (Used on filters manufactured after 11/98. )
- #17 – 170035 – Clean & Clear Plus BTM Manifold W/ Outlet Pipe Assy (Used on filters manufactured after 11/98. )
- #20 – 170024 – 320SQF Clean & Clear Plus Tank Lid
- #22 – 192320 – Clean & Clear Plus/ FNS Plus Upper Bulkhead Oring (Used on filters manufactured after 11/98. )
- #23 – 195339 – SS Back-Up Ring (Used on filters manufactured after 3/03. )
- NOT SHOWN – 192019 – Clean & Clear Plus Drain Plug Wrench
Please confirm your model number matches your existing equipment before ordering.
GTIN:
SKU: DIAGRAM-EC-160340
Brand: Pentair
Price range
$8.46 - $449.00
Tax and shipping are calculated at checkout.
Expert Support
Secure Checkout
Quality Guaranteed
Fast Shipping 3-5 Days
Key Features
- Exploded parts diagram for the Pentair 320 SqFt Clean & Clear Plus Cartridge Filter (model EC-160340)
- 44 replacement parts available to order online
- Diagram number shown next to every part for easy matching
- Genuine Pentair parts plus compatible alternates
- Add multiple parts to your cart at once
