Pentair 25 SqFt Dynamic Series II High Flow Slip Top Load Cartridge Filter R172502J Parts & Diagram

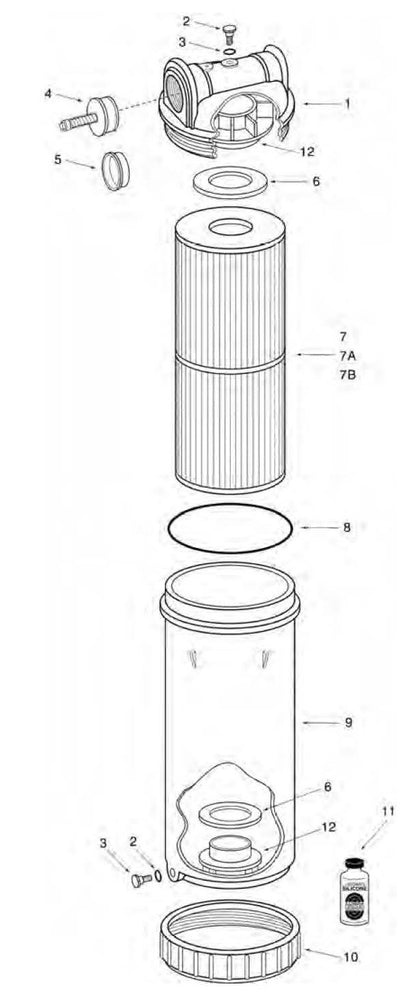

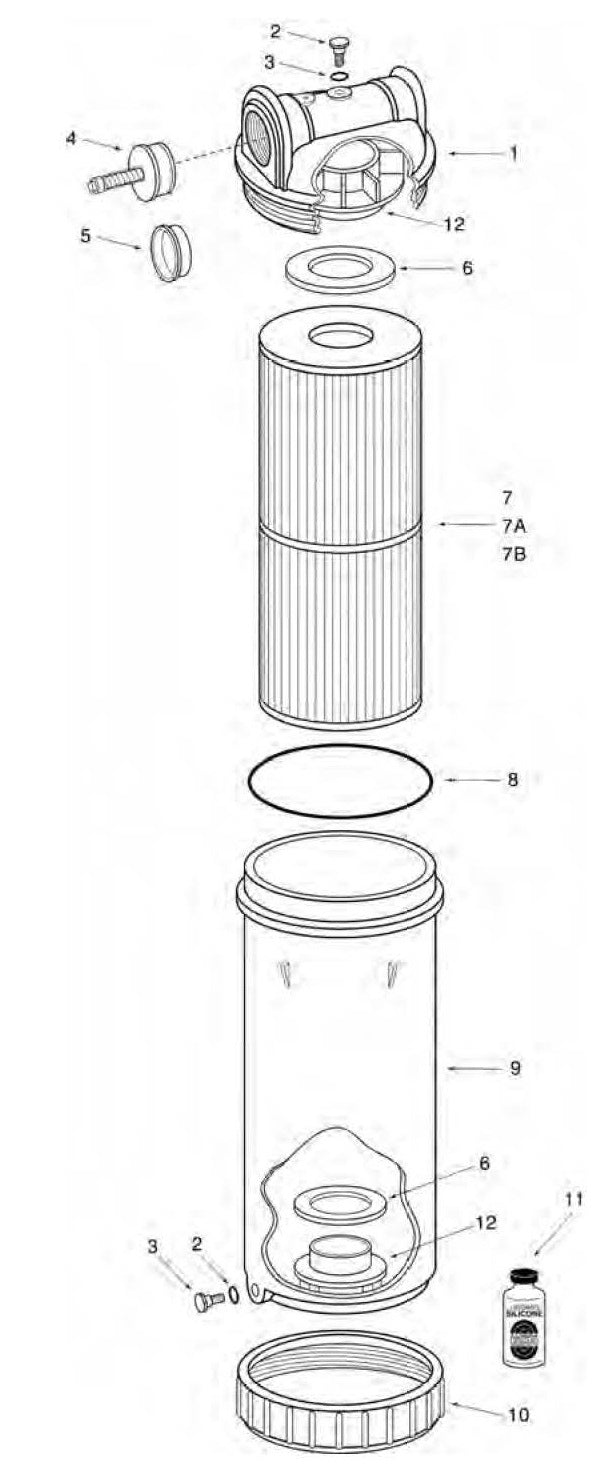

Replacement parts and exploded parts diagram for the Pentair 25 SqFt Dynamic Series II High Flow Slip Top Load Cartridge Filter (model R172502J). Find the part on the diagram, then look for the same number (#) next to each part in the Available Parts list and add the parts you need to your cart.
Parts marked Alternate are compatible replacements from other manufacturers.
Other Parts on This Diagram
These parts are not listed for online purchase. Contact us with the diagram number and part number to order.
- #1 – R172213 – 1.5" FPT Dynamic Manifold Only
- #1 – R172213S – 1.5" Socket Dynamic Manifold Only
- #1 – R172213XT – Manifold-Threaded Black
- #1 – R172213X – 1.5" Black Socket Manifold Only
- #1A – R172213C – 1.5" FPT Dynamic Complete Manifold (Complete manifold includes No. 1, No. 2, No. 3, No. 4, No. 6 and No. 12. )
- #1A – R172213SC – 1.5" SKT Dynamic Complete Manifold (Complete manifold includes No. 1, No. 2, No. 3, No. 4, No. 6 and No. 12. )
- #1A – R172213PT – Manifold Black THD Comp (Complete manifold includes No. 1, No. 2, No. 3, No. 4, No. 6 and No. 12. )
- #1A – R172213P – Manifold Black Slip Comp (Complete manifold includes No. 1, No. 2, No. 3, No. 4, No. 6 and No. 12. )
- #4 – R172226X – 1.5" Black Bypass Assy
- #5 – R172225X – 1.5" Black Bypass Disable Plug
- #7 – R173428 – Crtg Rnbw Dynamc 25 6PK
- #8 – R172240 – High Capacity Chlorinator Lid Oring
- #9 – R172212 – Dynamic I Cartridge Housing
- #9 – R172212X – Black Cartridge Housing
- #12 – R172232X – Black Dynamic Support Ring
Please confirm your model number matches your existing equipment before ordering.
GTIN:
SKU: DIAGRAM-R172502J
Brand: Pentair
Price range
$4.68 - $31.34
Tax and shipping are calculated at checkout.
Expert Support
Secure Checkout
Quality Guaranteed
Fast Shipping 3-5 Days
Key Features
- Exploded parts diagram for the Pentair 25 SqFt Dynamic Series II High Flow Slip Top Load Cartridge Filter (model R172502J)
- 12 replacement parts available to order online
- Diagram number shown next to every part for easy matching
- Genuine Pentair parts plus compatible alternates
- Add multiple parts to your cart at once
