Hayward 36" HCF Series Commercial Fiberglass Sand Filter with 2.5" Bulkhead HCF236C Parts & Diagram

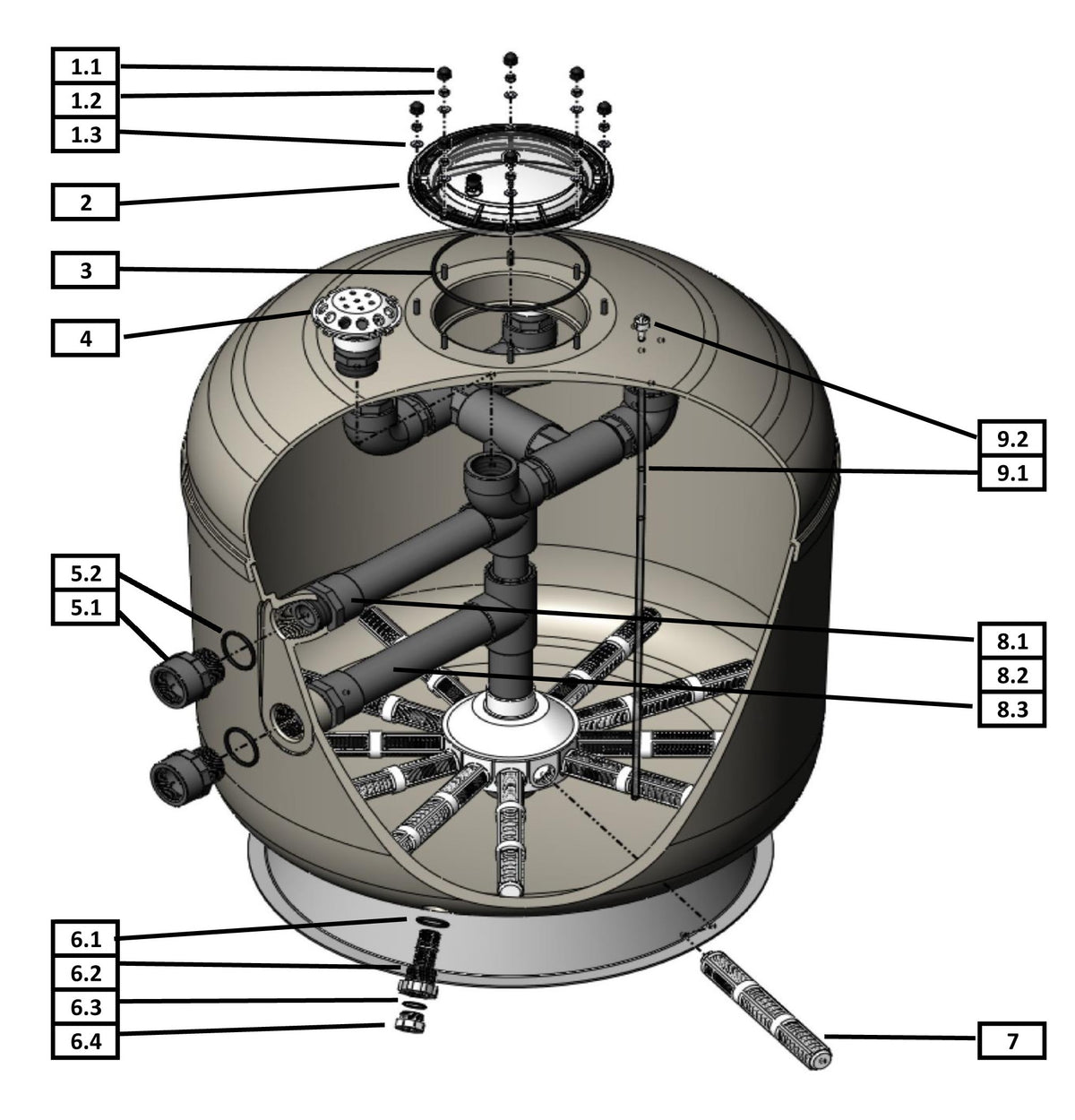

Replacement parts and exploded parts diagram for the Hayward 36" HCF Series Commercial Fiberglass Sand Filter with 2.5" Bulkhead (model HCF236C). Find the part on the diagram, then look for the same number (#) next to each part in the Available Parts list and add the parts you need to your cart.
Parts marked Alternate are compatible replacements from other manufacturers.
Other Parts on This Diagram
These parts are not listed for online purchase. Contact us with the diagram number and part number to order.
- #4 – HCXFDIF1000 – Diffuser
- #7 – HCXFLAT0825 – 8.25" Lateral Kit (CONTAINS 2 LATERALS PER KIT)
- #7.1 – HCXFLAT0825 – 8.25" mm Lateral
- #7.2 – HCXFLAT1050 – 10.5" Lateral KIT" (CONTAINS 2 LATERALS PER KIT)
- #9 – HCXFARK1000 – Collector AIR Relieve Kit
- #9.2 – HCXFARK1000 – Pipe CUP
Please confirm your model number matches your existing equipment before ordering.
GTIN:
SKU: DIAGRAM-HCF236C
Brand: Hayward
Price range
$65.63 - $195.73
Tax and shipping are calculated at checkout.
Expert Support
Secure Checkout
Quality Guaranteed
Fast Shipping 3-5 Days
Key Features
- Exploded parts diagram for the Hayward 36" HCF Series Commercial Fiberglass Sand Filter with 2.5" Bulkhead (model HCF236C)
- 7 replacement parts available to order online
- Diagram number shown next to every part for easy matching
- Genuine Hayward parts plus compatible alternates
- Add multiple parts to your cart at once
