Hayward 325 SqFt SwimClear Cartridge Filter W3C3030 Parts & Diagram

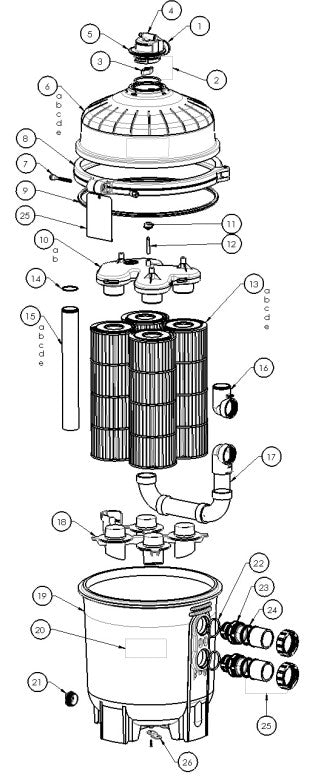

Replacement parts and exploded parts diagram for the Hayward 325 SqFt SwimClear Cartridge Filter (model W3C3030). Find the part on the diagram, then look for the same number (#) next to each part in the Available Parts list and add the parts you need to your cart.
Parts marked Alternate are compatible replacements from other manufacturers.
Other Parts on This Diagram
These parts are not listed for online purchase. Contact us with the diagram number and part number to order.
- #3 – CCX1000N – Air Relief Valve Nut
- #4 – CCX1000V – Manual Air Relief W/O-ring
- #6b – DEX3620BTC – Upper Filter Body C3030
- #11 – CX3000J1 – Air Relief Filter
- #12 – CX2030Z3 – Air Relief Tube
- #14 – DEX2400Z5 – O-Ring
- #15b – CX3031F7 – Outlet Pipe C3030
- #16 – CX3030F – Inlet Elbow
- #17 – CX3030H – Assy, Swimclear Piping
- #18 – CX3030D – Bottom Seal Plate
- #21 – SP1022CBLK – 1-1/2" Drain Plug W/O-ring
- #22 – SX220Z2 – O-Ring
- #23 – CX3035F – Bulkhead Fitting
- #26 – DEX2420DCKIT – Strap Kit (Optional)
Please confirm your model number matches your existing equipment before ordering.
