Jandy White AquaLink RS OneTouch Control Panel 7953 Parts & Diagram

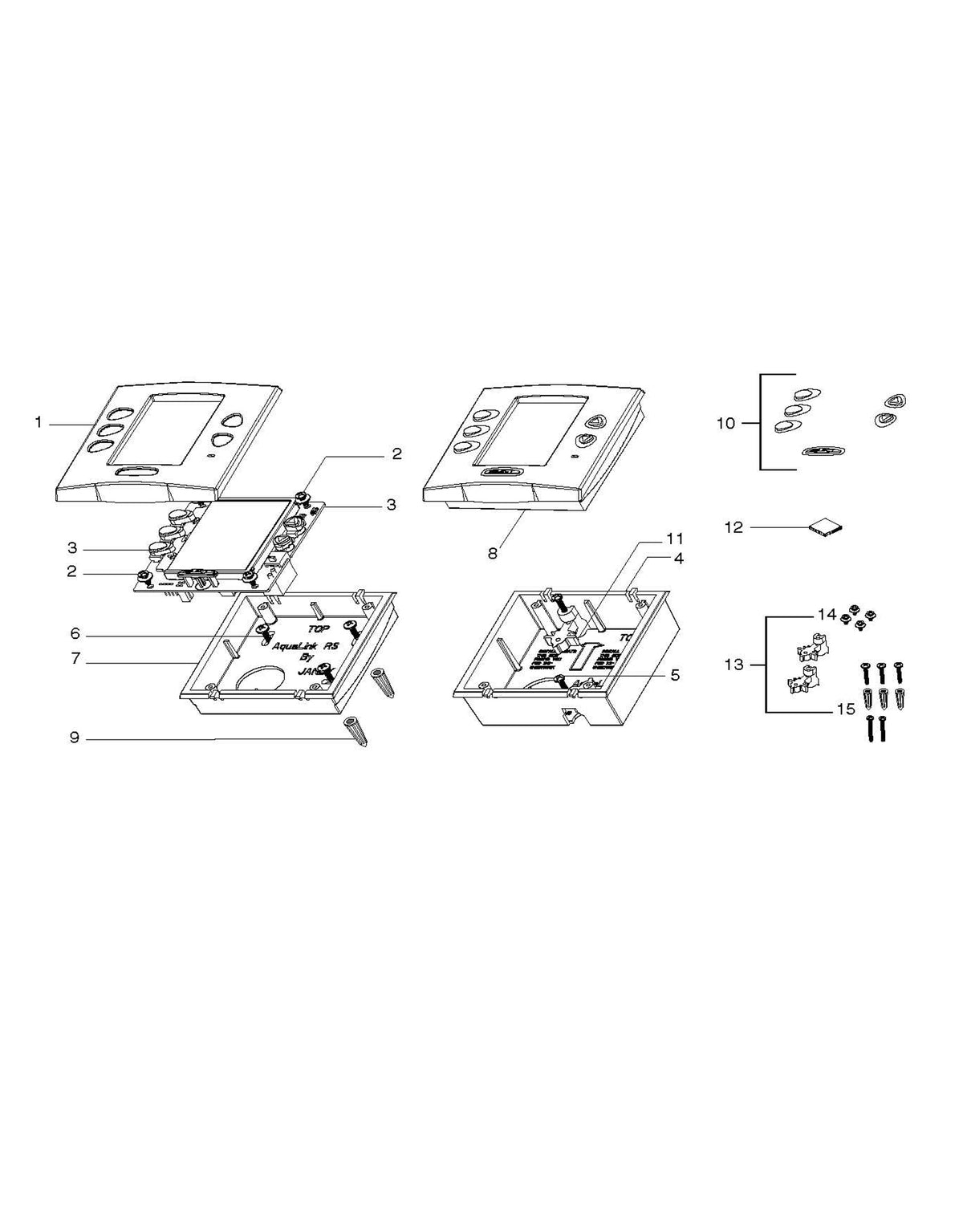

Replacement parts and exploded parts diagram for the Jandy White AquaLink RS OneTouch Control Panel (model 7953). Find the part on the diagram, then look for the same number (#) next to each part in the Available Parts list and add the parts you need to your cart.
Parts marked Alternate are compatible replacements from other manufacturers.
Other Parts on This Diagram
These parts are not listed for online purchase. Contact us with the diagram number and part number to order.
- #1 – R0550200 – Black RS Onetouch Faceplate
- #3 – R0550800 – RS Onetouch PCB Sub-Assy W/ BLK Buttons & LCD
- #7 – R0551000 – White Onetouch Control Surface Mount Housing
- #8 – 7953 – White Aqualink RS Onetouch Control Panel
- #8 – 7954 – Black Aqualink RS Onetouch Control Panel
- #10 – R0551400 – White Onetouch Replacement Button SET
- #13 – 7952 – Onetouch Control Mounting Kit
- N/S – R0467100 – RS Service Controller Wire Harness W/ RJ10 Connector (Not Shown )
Please confirm your model number matches your existing equipment before ordering.
GTIN:
SKU: DIAGRAM-7953
Brand: Jandy
Price range
$40.61 - $1,016.87
Tax and shipping are calculated at checkout.
Expert Support
Secure Checkout
Quality Guaranteed
Fast Shipping 3-5 Days
Key Features
- Exploded parts diagram for the Jandy White AquaLink RS OneTouch Control Panel (model 7953)
- 2 replacement parts available to order online
- Diagram number shown next to every part for easy matching
- Genuine Jandy replacement parts
- Add multiple parts to your cart at once
