A pool can look clean while its filter is working far harder than it should. When pressure rises quickly after cleaning, return flow weakens, or fine debris keeps reappearing, cartridge pool filter replacement may be the more cost-effective answer than another round of rinsing. A fresh, correctly matched cartridge helps restore circulation, supports water clarity, and reduces strain on the pump.
The key is replacing the cartridge for the right reason and with the right part. Cartridge filters are not universal. Length, outside diameter, end-cap design, center-hole size, filter area, and manufacturer cross-reference all matter. A nearly correct cartridge can fit poorly, bypass debris, damage internal components, or prevent the filter tank from sealing correctly.
When Cartridge Pool Filter Replacement Is Due
Most pool filter cartridges last about one to three seasons, though that range depends heavily on bather load, debris, water balance, cleaning habits, and the size of the filter relative to the pool. A screened-in residential pool with good chemistry may get several years from a cartridge. A pool surrounded by trees, used daily, or recovering from algae can wear through one much sooner.
Pressure is one useful indicator, but it is not the only one. Start by recording the clean-filter pressure after installing a clean cartridge and running the system normally. When pressure rises roughly 8 to 10 PSI above that baseline, it is time to clean the cartridge. If the pressure returns quickly after cleaning, the media may be loaded with oils, scale, embedded debris, or simply worn out.
Replace the cartridge when cleaning no longer restores normal flow and pressure, when pleats remain flattened or torn, or when bands, end caps, or the center core crack. Persistent cloudy water despite balanced chemistry and adequate run time can also point to a cartridge that is no longer trapping fine particles effectively.
Do not confuse low pressure with a dirty filter. Low pressure often indicates a suction-side restriction, a clogged pump basket, low water level, a blocked skimmer, or a valve issue. A dirty cartridge generally raises filter pressure because it restricts water leaving the pump.
Identify the Correct Replacement Cartridge
The safest way to select a replacement is to start with the filter tank model and manufacturer. That information is usually printed on the filter label or molded into the tank. Brand-specific replacement cartridges from manufacturers such as Hayward, Pentair, Jandy, and Waterway are designed around particular tank and manifold configurations.
If the label is faded or missing, remove the old cartridge and measure it carefully. You need the overall length, outside diameter, diameter of the center opening, and the exact end-cap style. Some cartridges have open holes at both ends, while others use closed caps, handles, slip fittings, or keyed ends. Filter area is also critical. A 100-square-foot cartridge and a 150-square-foot cartridge may look similar but are not interchangeable.
Check the old cartridge for a part number before measuring. Many cartridges have an OEM number or an aftermarket cross-reference printed near an end cap. That number is useful, but verify it against dimensions and the filter model. Cartridges can be revised over time, and a previous owner may have installed an incorrect replacement.
For service professionals managing multiple accounts, document the filter model, cartridge part number, clean PSI, and installation date. That small record reduces repeat troubleshooting and makes seasonal replacement orders more accurate.

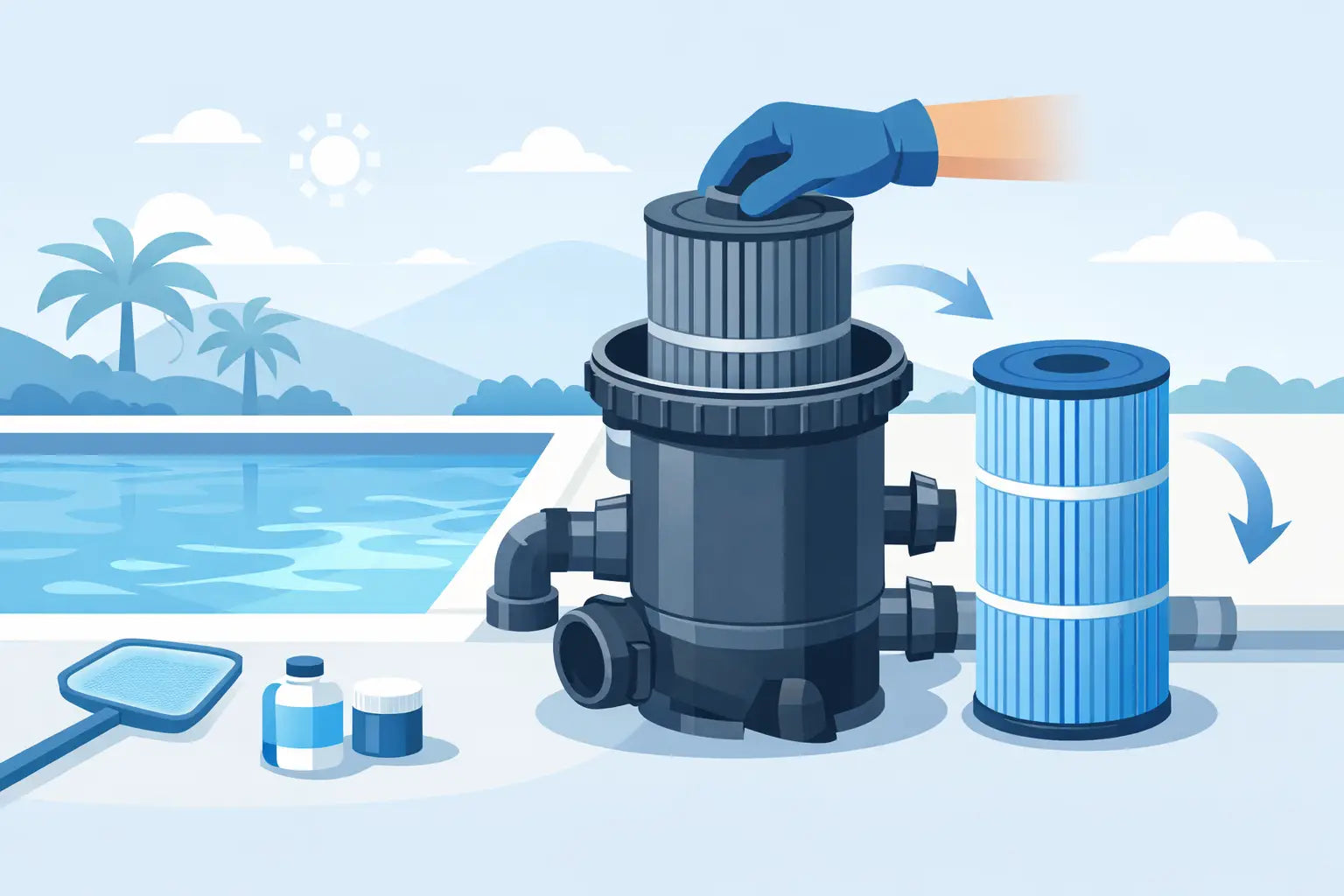

How to Replace a Pool Filter Cartridge Safely
Cartridge replacement is straightforward, but the filter tank is pressurized equipment. Shut the system down completely before opening it. Turn off power at the breaker when possible, especially if the equipment is on an automation schedule that could restart the pump.
First, close isolation valves if your plumbing has them. Open the air-relief valve on top of the filter and wait until pressure reaches zero. Never loosen a clamp band or lid while the gauge shows pressure or while air is still escaping. Remove the drain plug if needed to lower the water level in the tank, then release the clamp or lid according to the filter manufacturer’s instructions.
Lift the old cartridge straight out. Depending on the filter size, it may be heavy with water and debris, so use controlled lifting and avoid twisting the internal manifold. Inspect the tank interior, standpipe, manifolds, air-bleed assembly, and O-ring sealing surface before installing the new cartridge. A damaged manifold can create bypass paths that make even a new cartridge perform poorly.
Clean the tank and remove loose debris. Inspect the lid O-ring for flattening, cracking, or nicks. Apply only the lubricant specified for pool equipment O-rings, typically a silicone-based lubricant. Petroleum products can damage certain rubber compounds and may attract dirt that interferes with the seal.
Seat the new cartridge fully onto the internal standpipe or manifold. Reinstall the lid and clamp evenly, following the manufacturer’s tightening instructions. Do not overtighten hardware in an attempt to stop a leak. A clean O-ring, aligned lid, and properly installed clamp matter more than excess force.
Open the air-relief valve before restarting the pump. Once water flows steadily from the relief valve, close it and inspect the tank for leaks. Record the new clean-filter PSI. That reading becomes the operating baseline for future cleanings.
Cleaning Habits That Extend Cartridge Life
A replacement cartridge performs best when it is not asked to solve preventable water problems. Maintain proper sanitizer, pH, alkalinity, and calcium hardness so oils, scale, and organic debris do not bind tightly to the pleats. Keep skimmer and pump baskets clear, and empty them before they restrict flow.
For routine cleaning, use a garden hose with moderate pressure and work from the top down, spreading the pleats gently. High-pressure washers can tear filter media or force pleats apart. Avoid aggressive brushing for the same reason.
A cartridge cleaner can help remove oils, sunscreen residue, and other contaminants that plain water will not release. If scale is present, use a cleaner appropriate for cartridge media and follow the product directions. Acid washing should not be the default solution. Used improperly, acid can damage the filter fabric and shorten cartridge life. It is generally better to remove oils and organic buildup first, then address mineral scale only when necessary.
Rotating between two matching cartridges can be practical for pools with heavy use or frequent cleanup needs. One cartridge can dry completely after cleaning while the other returns the system to service. This approach is not mandatory for every homeowner, but it can reduce downtime and make deep cleaning easier.
Choose Value Without Sacrificing Fit
The lowest-priced cartridge is not always the lowest-cost option. A poor fit or weak center core can lead to short service life, recurring water-quality issues, and extra labor. At the same time, an OEM label is not the only path to a dependable replacement. Quality aftermarket cartridges can provide strong value when their dimensions, end configuration, filter area, and compatibility match the original specification exactly.
Consider the full job when ordering. If the tank O-ring is brittle, the pressure gauge is unreadable, or the air-relief assembly is worn, replacing those small components during cartridge service can prevent a second shutdown later. Pool Supply 4 Less carries filter cartridges and replacement parts across major equipment brands, making it easier to match the cartridge to the tank rather than guessing from appearance alone.
A clean, properly sized cartridge does more than polish the water. It gives the pump a clearer path to move water through the system, lets sanitizers circulate effectively, and gives you a dependable pressure reading to work from. Replace it before poor filtration turns into a larger equipment or water-quality problem.
